Adjustable Torque Hinge for Industrial & Cabinet Applications
PRODUCT PARAMETERS
Description

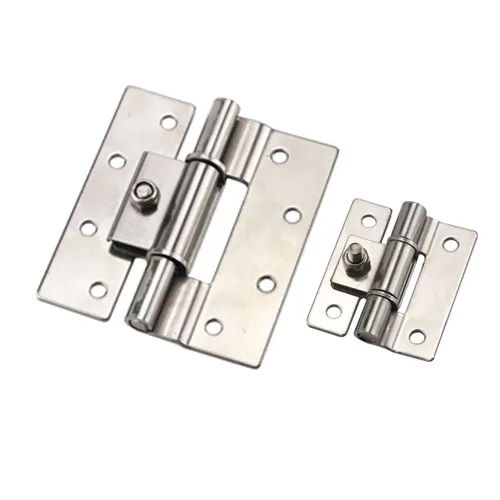

The XG11-077 adjustable torque hinge (positioning hinge) provides precise angle control and adjustable damping, ideal for industrial and commercial settings. This versatile positioning hinge excels in applications requiring doors or panels to stay securely open at any position.
Key uses for the XG11-077 adjustable torque hinge include industrial equipment access covers, electrical cabinet doors, medical device panels, lab instrument hatches, commercial electronics housings, and outdoor control boxes. Its adjustable torque (0~6N·m) supports varying weights, while corrosion-resistant 304 stainless steel ensures durability. Essential where frequent access (10,000+ cycles), reliable positioning, and robust performance are critical. This adjustable torque hinge is a top solution for precise, reliable motion control.
| Code | Part No. | Torque (N·m) | Material | Surface Finish |
| XG11-077 | XG11-077-1 | 0–2.0 | SUS304 | Vibratory Polished |
| XG11-077-2 | 0–6.0 |
Drawings

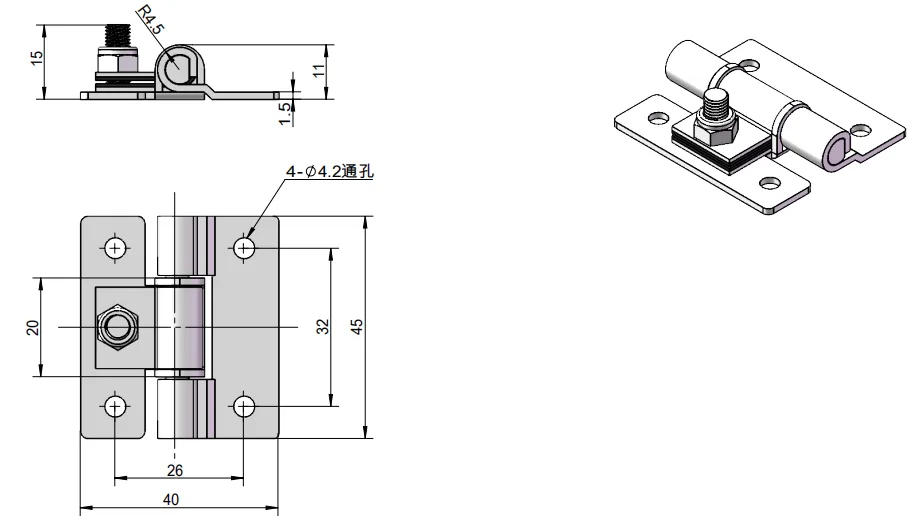

XG11-077-1 Adjustable Torque Hinge Dimensions Diagram

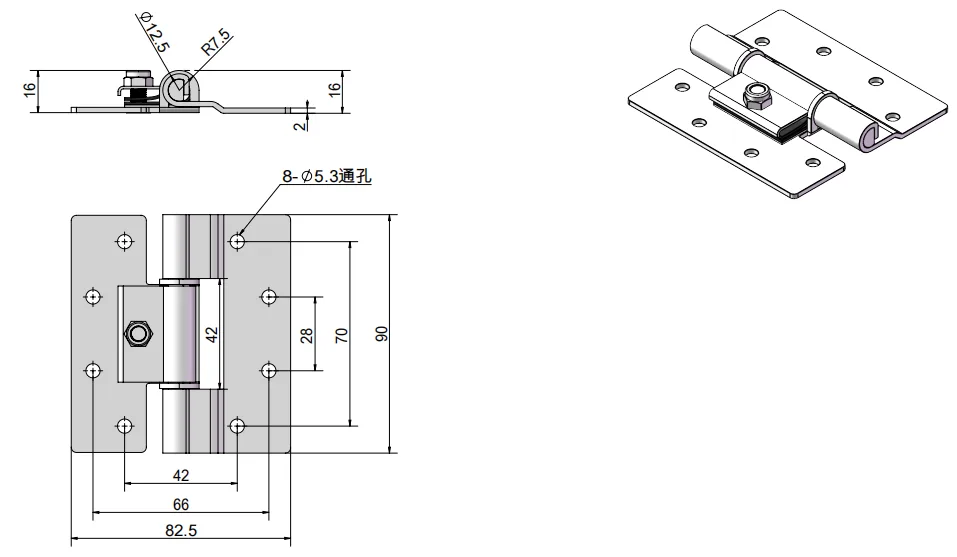

XG11-077-2 Adjustable Torque Hinge Dimensions Diagram
FAQ
Where is this hinge typically used?
Used for doors/panels needing position hold, like industrial equipment access, control cabinets, medical devices, lab instruments, commercial electronics, and outdoor enclosures.
What models and torque ranges are available?
Two models:

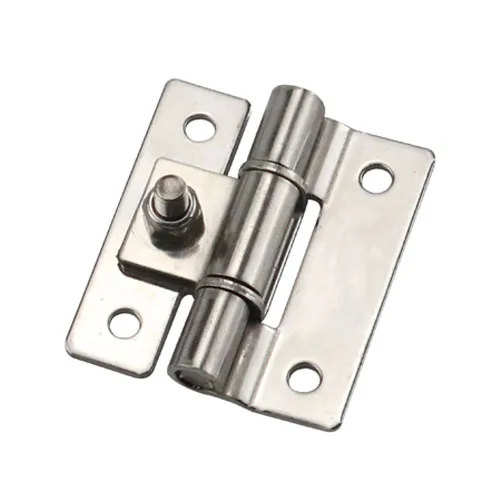

XG11-077-1: 0-2.0 N·m (light doors)

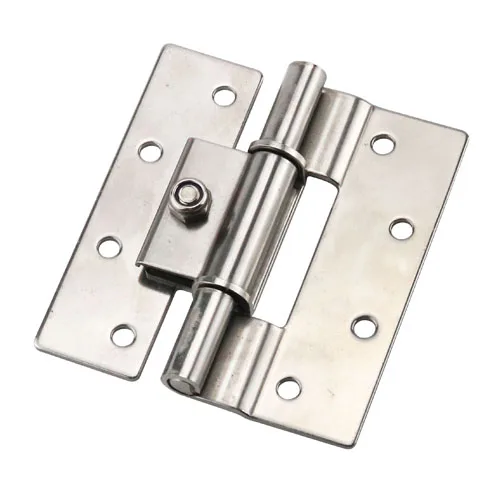

XG11-077-2: 0-6.0 N·m (medium doors).
Material and corrosion resistance?
Made of 304 stainless steel with tumbled finish. Offers good corrosion resistance for indoor/outdoor and mild corrosive environments.
Can you customize torque or specs?
Customization possible: special torque, length, hole patterns, or finishes. Provide door weight and usage for engineering assessment.
How is it shipped? What’s the lead time?
Standard torque models (02/06 N·m) ship in 7-15 business days. Custom orders take 2-4 weeks; lead time confirmed per requirement.
Does it need maintenance? What’s its lifespan?
No routine lubrication needed. Check bolt tightness periodically. Torque decay <20% over 10,000 cycles, suitable for frequent use.
