Durable Adjustable Torque Hinge – 180° Opening, Custom Torque
PRODUCT PARAMETERS
Description

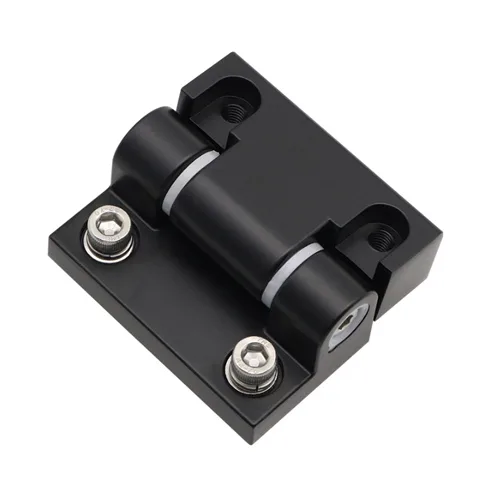

The XG11-086 adjustable torque hinge delivers precise, reliable performance.
Key features include 0~2.0 N·m adjustable torque and a 180° opening angle.
Its zinc alloy construction features durable black surface finishing.
Perfect for demanding environments:
- Medical
- Equipment panels
- Monitor arms
- Ultrasound device flip covers
- Industrial
- Control cabinets
- HMI interfaces
- Sensor protection
- Telecom / Power
- 5G cabinets
- Power enclosures
- Outdoor housings
- Consumer Electronics
- Foldable audio devices
- Smart home panels
- Vehicles & Lab
- Vehicle dashboards
- Lab equipment access doors
| Code | Item No. | Material | Torque Range | Surface Treatment |
|---|---|---|---|---|
| XG11-086 | XG11-086 | ZDC (Zinc Die-Cast) | 0–2.0 N·m (Adjustable) | Black Finish |

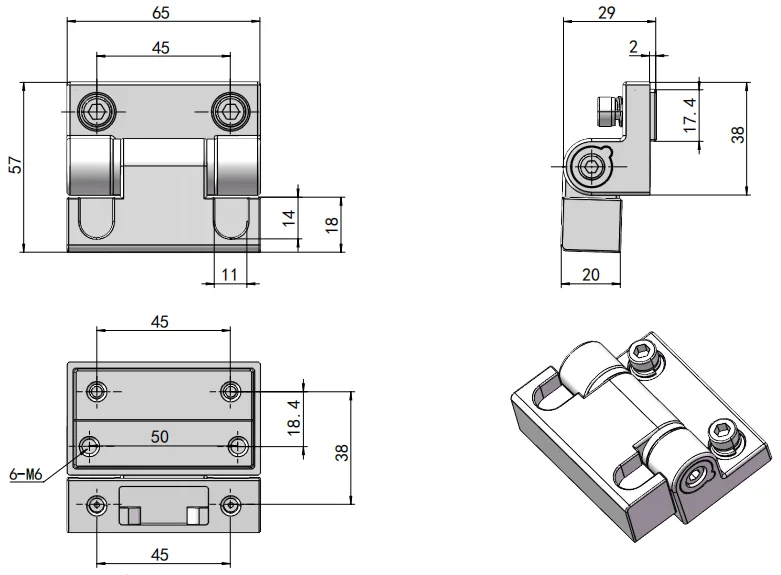

Drawings
FAQ
Q: Can the torque range be customized beyond 0–2.0 N·m?
A: Yes. While 0–2.0 N·m is standard, we can customize the range higher or lower. Tell us your specific application and door specs; our engineers will confirm feasibility.
Q: Is this hinge suitable for outdoor or humid environments?
A: Yes, with limitations. Its corrosion-resistant zinc alloy construction handles most industrial/semi-outdoor settings. For extreme salt spray or chemicals, ask about heavy-duty options.
Q: Are there mounting restrictions for medical devices or vertical displays?
A: No restrictions. It functions perfectly horizontally or vertically (like for monitor arms, medical panels, or flip-up panels), offering smooth damping and 180° motion.
Q: Are CAD drawings or 3D files available?
A: Yes. Get 2D drawings (PDF/DWG) and 3D models (STEP, IGES) for easy design integration. Contact support for download links or our resource package.
Q: How is torque adjusted or maintained after installation?
A: Easily via its adjustment mechanism (hex key or knob). Fine-tune torque as needed for door weight or use frequency. Regular checks are advised for high-use applications.
