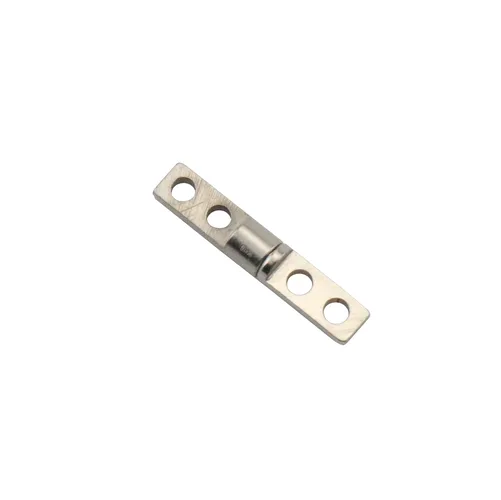

Embedded Torque Hinge | 360° Shaft for Electronics & Devices

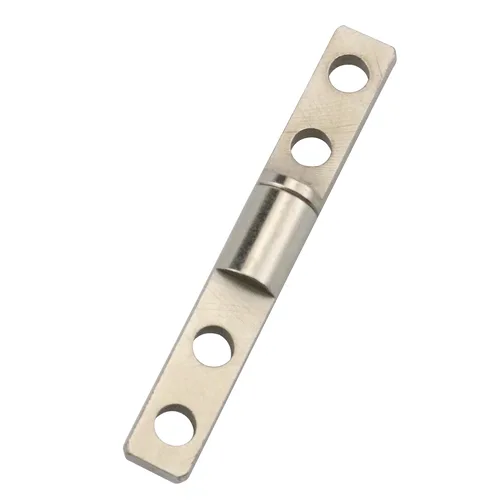

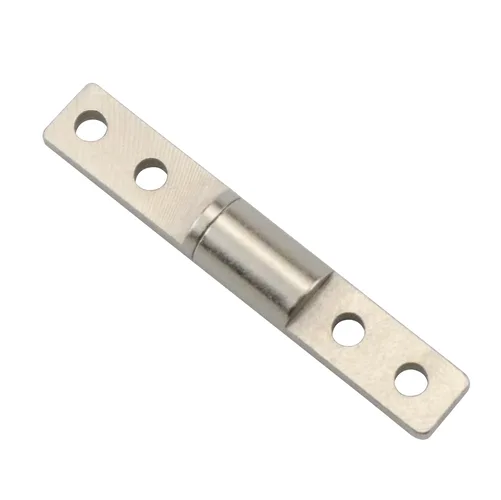

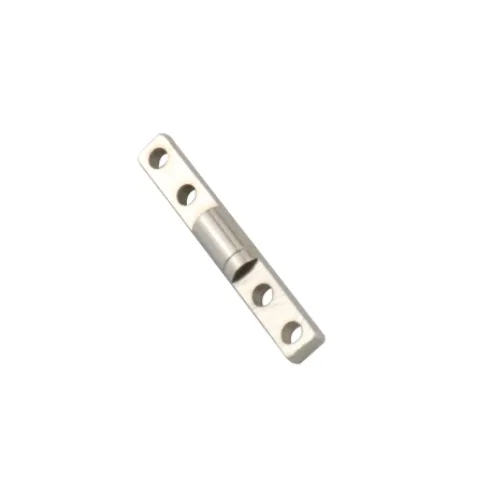

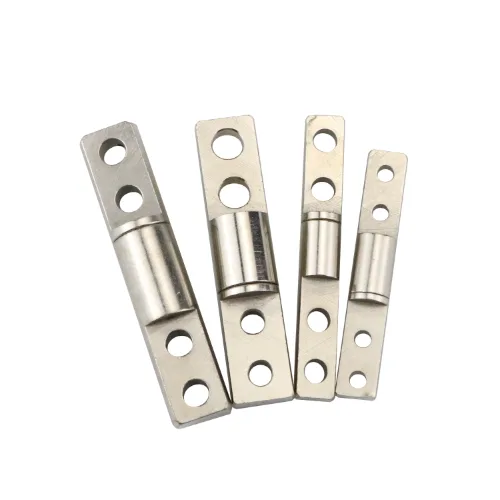

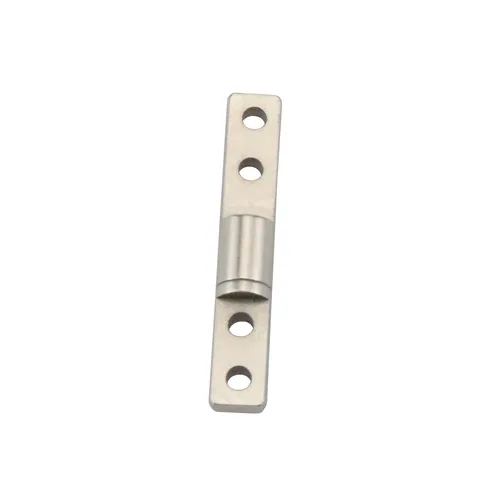

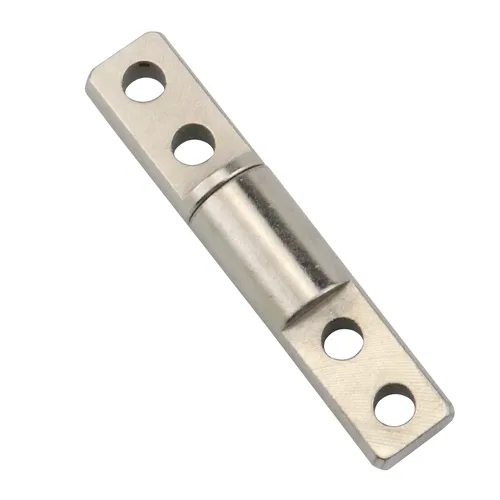

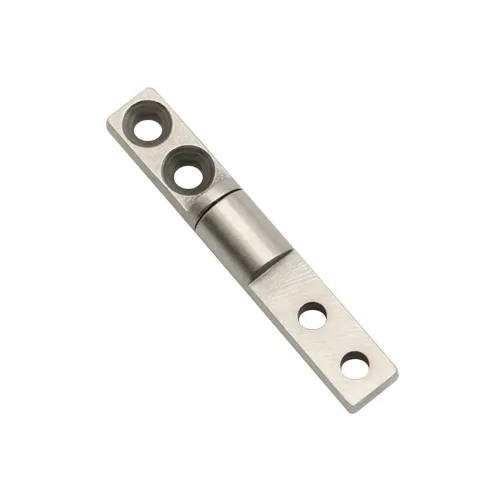

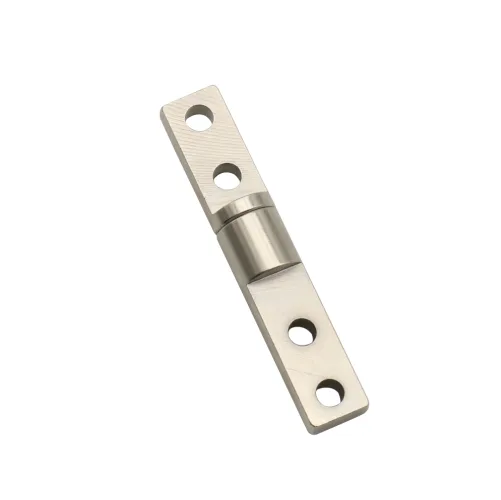

XG11-076 Embedded Torque Hinge made of durable iron, offering 0.1–2.0 N·m torque options and multiple sizes. Its 360° round-shaft design ensures smooth, stable motion—ideal for laptops, medical devices, automotive panels, and smart home appliances.

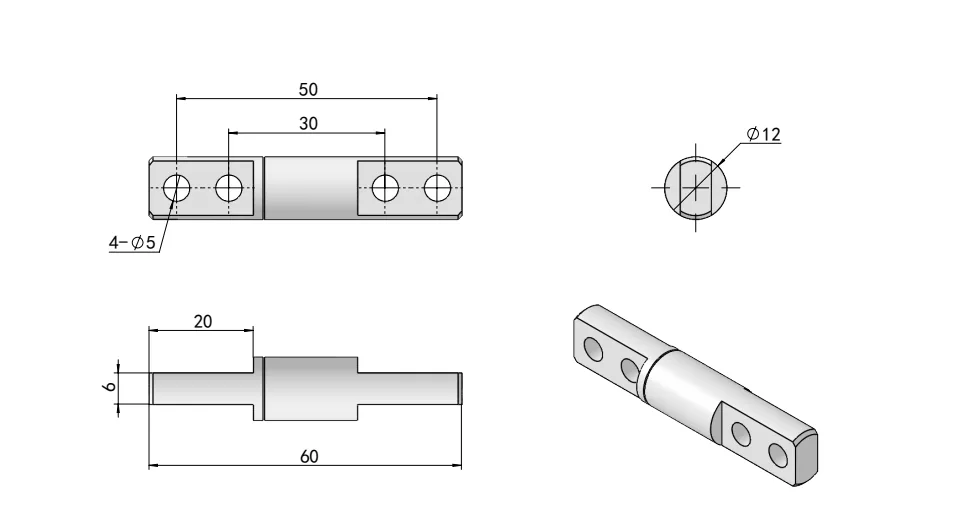

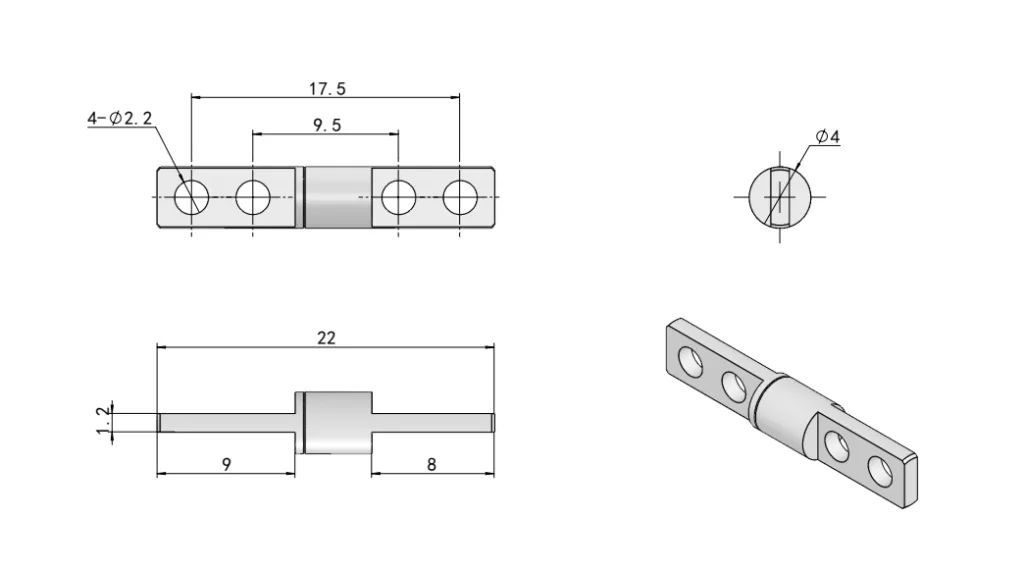

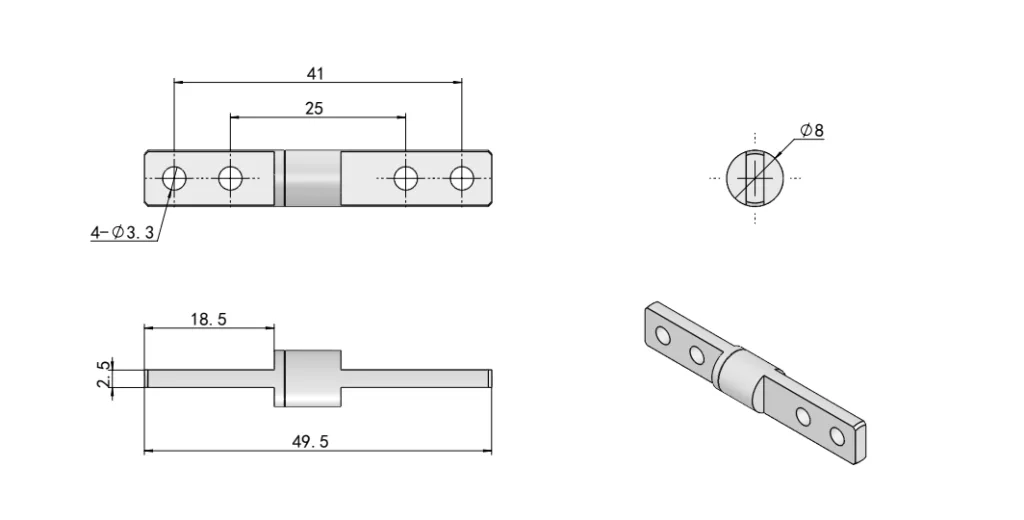

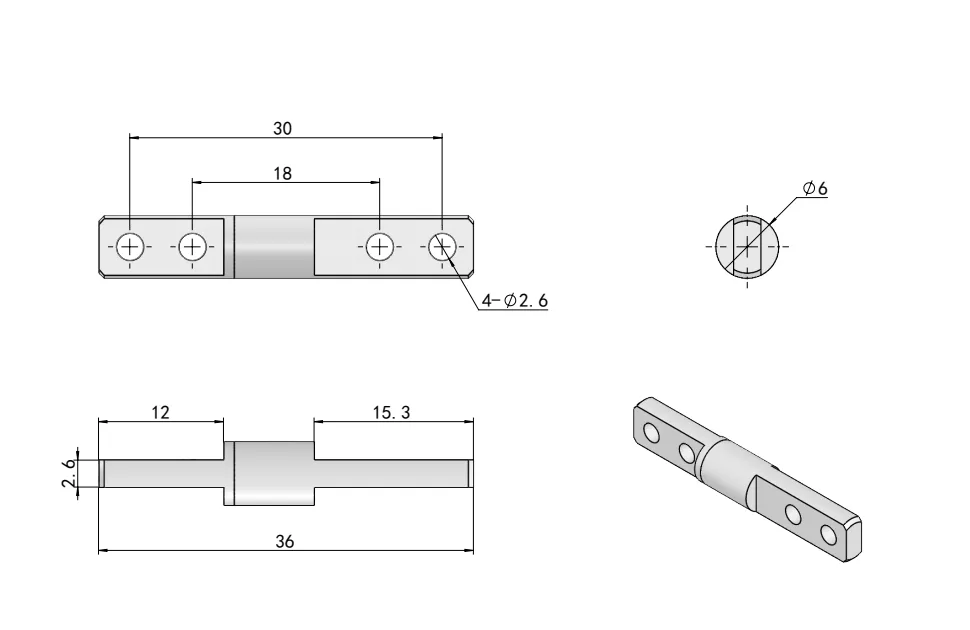

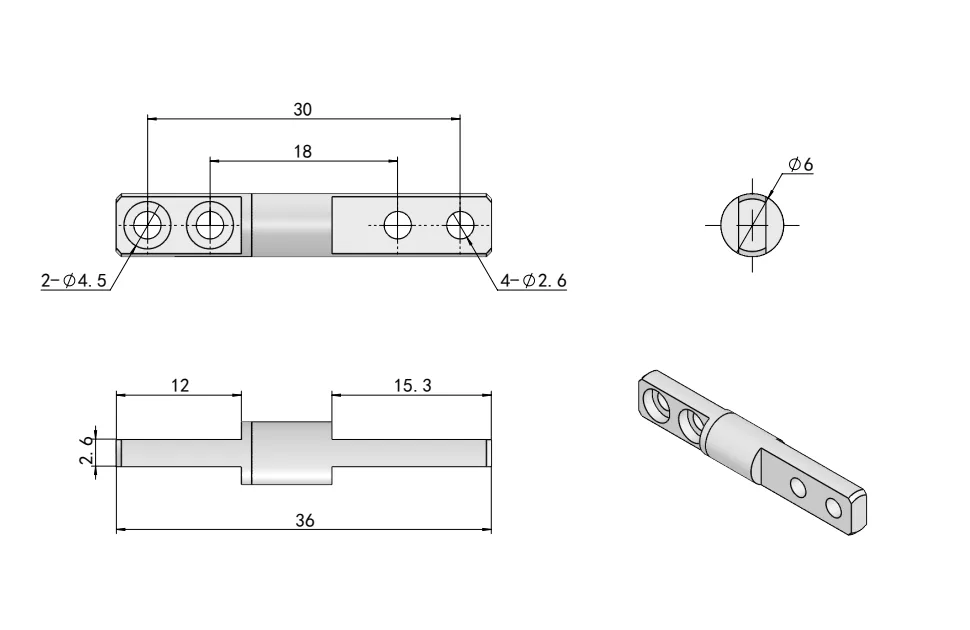

Dimension Drawing

XG11-076-1

Code	Item No.	Material	Surface Treatment	Torque (N·m)
XG11-076-1	XG11-076-1-1	Iron	Nickel Plating	0.1
	XG11-076-1-2			0.2
	XG11-076-1-3			0.3
	XG11-076-1-4			0.4

XG11-076-2

Code	Item No.	Material	Surface Treatment	Torque (N·m)
XG11-076-2	XG11-076-2-1	Iron	Nickel Plating	0.1

XG11-076-3

Code	Item No.	Material	Surface Treatment	Torque (N·m)
XG11-076-3	XG11-076-3-3	Iron	Nickel Plating	0.3
	XG11-076-3-6			0.6

XG11-076-4

Code	Item No.	Material	Surface Treatment	Torque (N·m)
XG11-076-4	XG11-076-4-1.5	Iron	Nickel Plating	0.15
	XG11-076-4-3			0.3
	XG11-076-4-5			0.5
	XG11-076-4-10			1
	XG11-076-4-12			1.2
	XG11-076-4-15			1.5
	XG11-076-4-17			1.7
	XG11-076-4-20			2
	XG11-076-4-30			3

XG11-076-5

Code	Item No.	Material	Surface Treatment	Torque (N·m)
XG11-076-5	XG11-076-5-30	Iron	Nickel Plating	3
	XG11-076-5-3			0.3

XG11-076-6

Code	Item No.	Material	Surface Treatment	Torque (N·m)
XG11-076-6	XG11-076-6-3	Iron	Nickel Plating	0.3
	XG11-076-6-6			0.6
	XG11-076-6-7			0.7
	XG11-076-6-8			0.8
	XG11-076-6-10			1
	XG11-076-6-15			1.5
	XG11-076-6-20			2

XG11-076-7

Code	Item No.	Material	Surface Treatment	Torque (N·m)
XG11-076-7	XG11-076-7-3	Iron	Nickel Plating	0.3
	XG11-076-7-5			0.5
	XG11-076-7-7			0.7
	XG11-076-7-10			1
	XG11-076-7-20			2

FAQ

Q: Does your factory offer R&D support for embedded torque hinge solutions?
A:Yes! Our factory has a skilled R&D team specializing in embedded torque hinge development. We continuously research new friction materials and torque control designs to achieve smoother rotation and extended durability. Whether for laptops, medical devices, or automotive panels, we can optimize hinge performance to meet your unique technical requirements.

Q: Can I customize the torque range or dimensions of my torque hinge?
A:Absolutely. As a trusted OEM torque hinge manufacturer, we provide complete customization options. You can specify torque values (0.1–2.0 N·m), shaft diameter, material type, surface finish, and rotation angle. Our engineers will assist with design validation, samples, and performance testing to ensure perfect fit and function in your product assembly.

Q:Where are your embedded torque hinges manufactured?
A:All our nickel-plated friction hinges are produced in our ISO-certified factory using precision CNC machining and automated torque testing equipment. Every hinge goes through strict quality inspection for strength, stability, and corrosion resistance to guarantee long-term reliability under continuous use in demanding environments.

Q: How soon can you deliver my order after payment?
A:We maintain a ready stock of standard hinge sizes for quick shipping within 7-15 working days. For customized orders, production usually takes 10–20 days, depending on volume and specifications. We offer global air and sea freight with professional export packaging to ensure your products arrive safely and on schedule.

Q:What if I receive a defective or mismatched product?
A:We stand behind our products as a professional industrial hinge factory. If any torque hinge arrives defective or does not meet your specifications, simply contact us within 7 days of delivery. We’ll promptly arrange a free replacement or refund, ensuring a worry-free purchasing experience and long-term cooperation.
