Positioning Hinges – 4-Stop or Free-Swinging Zinc Alloy
PRODUCT PARAMETERS
Description

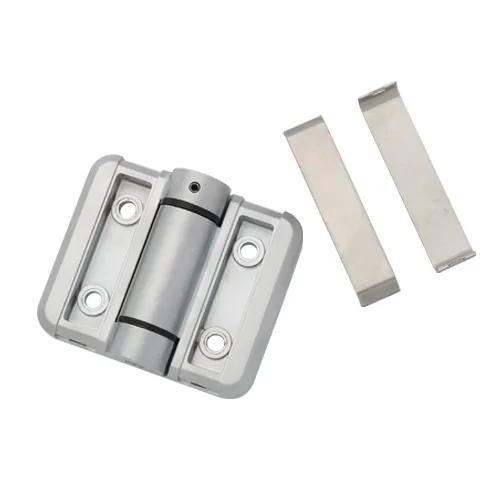

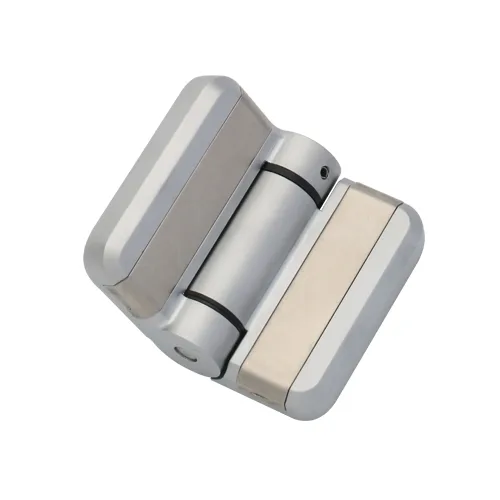

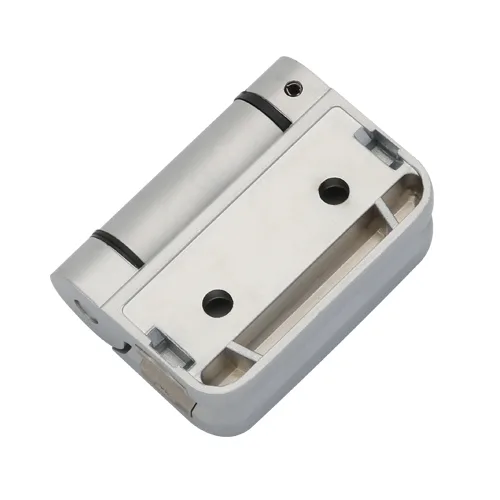

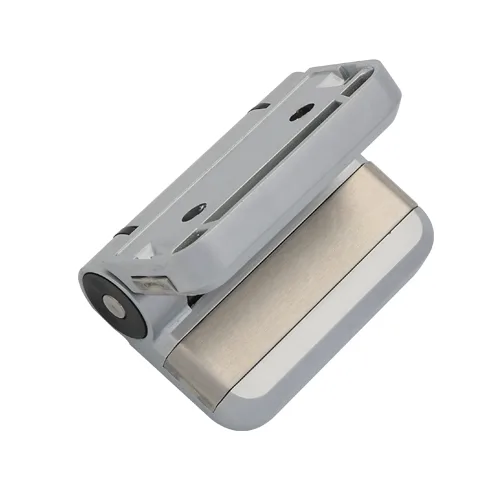

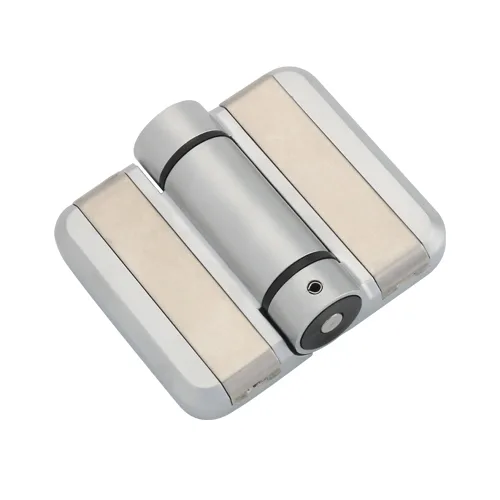

XG11-069 Positioning Hinges:
Two versions: Free-swinging (XG11-069-1) or 4-position detent (XG11-069-2). The detent model securely holds panels at 0°, 60°, 120°, and 180° for safe, hands-free operation. Made from zinc alloy with standard or black finish. Features screw mounting, symmetry, and a low-profile design. Ideal for medical equipment, comms racks, test instruments, industrial panels, and vehicle interiors needing reliable positioning.
| Model | Part Number | Function | Material | Surface Finish |
| XG11-069 | XG11-069-1 | Without positioning | ZDC (Zinc Die-Cast) | Matte |
| XG11-069-2 | With positioning |

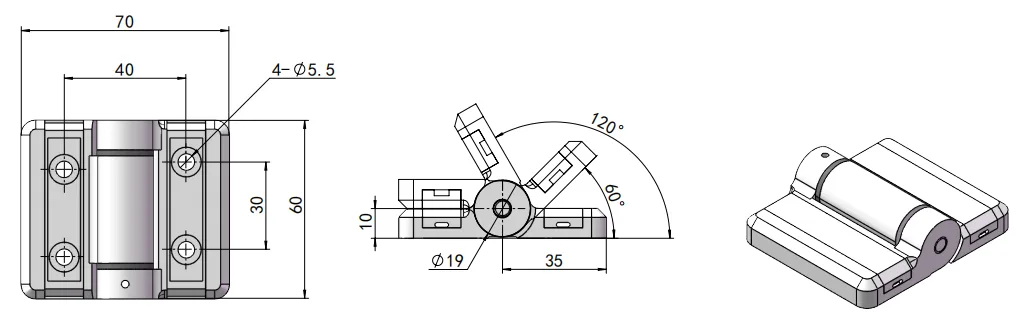

Drawings
FAQ
In stock & lead time?
Standard models (XG11-069-1 & -2) ship in 7-15 business days. Bulk/custom orders have variable lead times.
Custom colors/materials?
Yes. Standard is zinc alloy (ZDC), matte/black finish. Stainless steel, plating, paint possible (MOQ applies).
Samples available?
Free samples for standard models (shipping cost yours). Custom samples take 5-7 business days.
Ideal applications?
Medical equipment, comms racks, test instruments, industrial panels, vehicle interiors. Model -2 offers hands-free positioning.
Installation difficult?
Simple screw installation. Symmetrical design, standard holes. Just needs a Phillips screwdriver.
Maintenance required?
Maintenance-free. Pre-lubricated & corrosion-treated. Just wipe clean; avoid harsh chemicals.
