Precision Torque Hinge XG11-124 with 0°/180° Detent – SUS304 Steel
PRODUCT PARAMETERS
Description

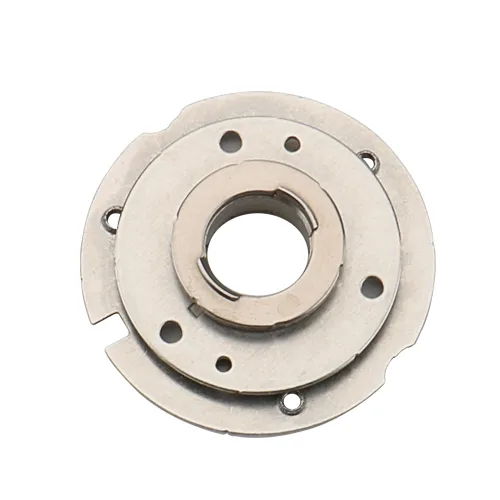

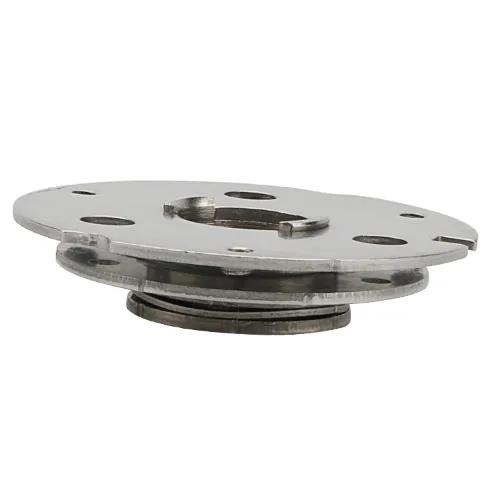

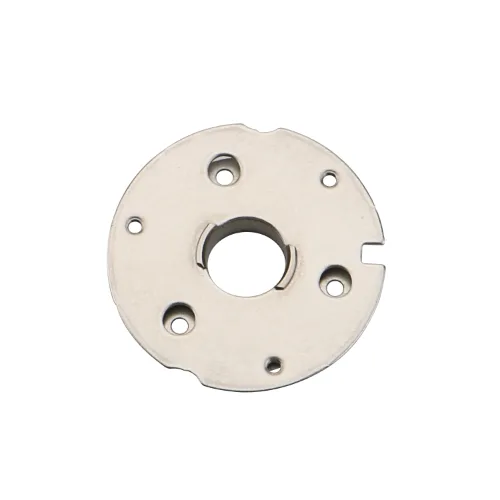

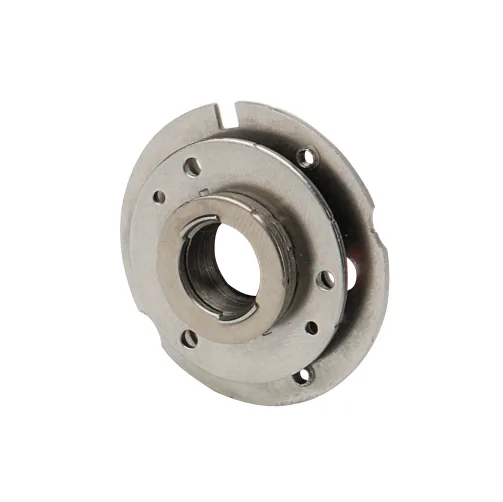

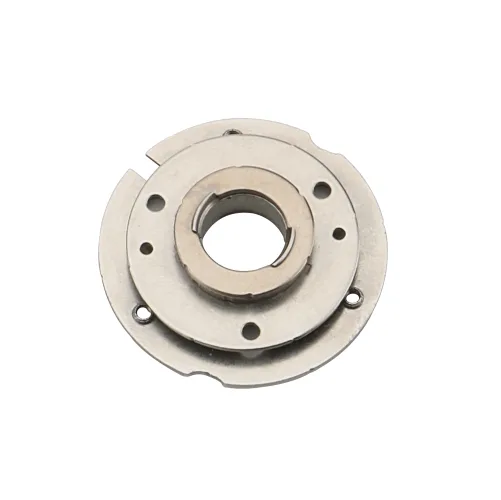

XG11-124 Precision Torque Hinge
Delivers stable 0.3 N·m torque with critical 0°/180° detent function. Brushed 304 stainless steel ensures superior corrosion resistance.
Ideal for:
Medical Devices: Secures monitor/analyzer covers; detent prevents accidental closure
Industrial Panels: Holds control/HMI covers reliably open or closed
Transport/Appliances: Locks covers in position despite vibration
The 0°/180° detent function guarantees covers lock securely open or closed, enhancing safety in medical, industrial, and premium equipment. Upgrade designs with detent reliability.
| Code | Part Number | Material | Surface Finish |
|---|---|---|---|
| XG11-124 | XG11-124-3 | SUS304 | Vibratory Polishing |

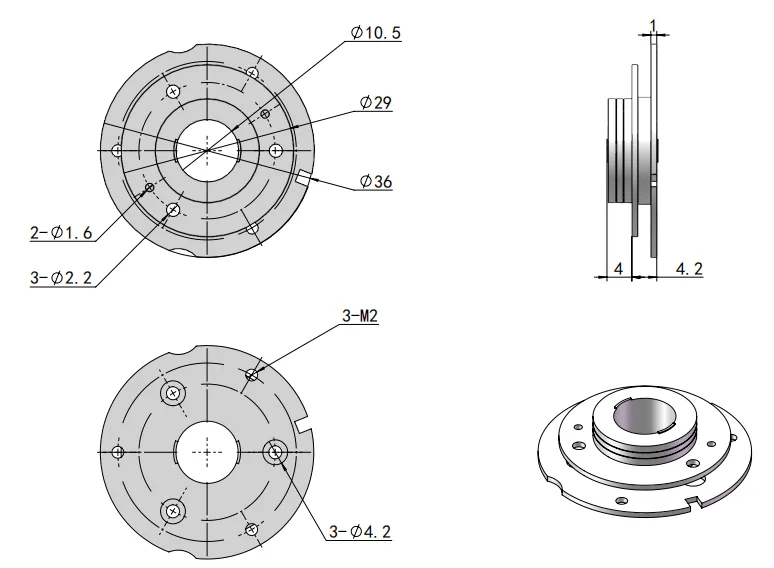

Drawings
FAQ
Torque Value & Use?
Stable 0.3 N·m torque holds lids/doors open or closed, preventing accidental closure. Ideal for medical equipment lids and industrial control panels.
0°/180° Detent Function?
Provides a secure lock at fully closed (0°) and fully open (180°) positions. Prevents unwanted movement and enhances safety.
Material & Corrosion Resistance?
Made of 304 stainless steel with a brushed finish. Offers excellent corrosion resistance for medical, outdoor, or damp environments.
Suitable Equipment?
Perfect for medical devices, industrial automation panels, transport, and premium appliances where stable positioning under vibration is critical.
Need Extra Parts for Positioning?
No. Built-in torque and 0°/180° detents allow the cover to stay securely open or closed without extra supports or locks.
Installation Complexity & Options?
Compact design fits standard installations. Supports symmetrical mounting; semi-concealed installation is possible in some panels (see tech drawings).
