Reliable Torque Hinge for Cabinets & Server Doors
PRODUCT PARAMETERS
Description

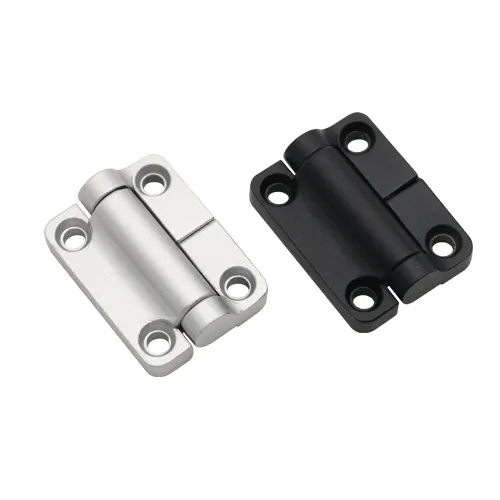

XG11-123 Torque Hinge: Reliable 5.5 N·m Holding Power
Need hinges that hold position securely?
The XG11-123 delivers consistent 5.5 N·m torque, ensuring doors and panels stay firmly open at any angle.
No additional struts or latches required.
Engineered for demanding applications:
Ideal for industrial control cabinets, medical device covers, and server rack doors.
Built to handle heavy panels while resisting vibration and wind forces.
Performance meets simplicity:
Compact zinc alloy construction ensures durability.
Enables smooth 180° operation.
Fast installation with standard M6 screws.
| Code | Part Number | Torque (N.m) | Material | Surface Finish |
| XG11-123 | XG11-123-1-55 | 5.5 | ZDC | Black |
| XG11-123-2-55 | Matte |

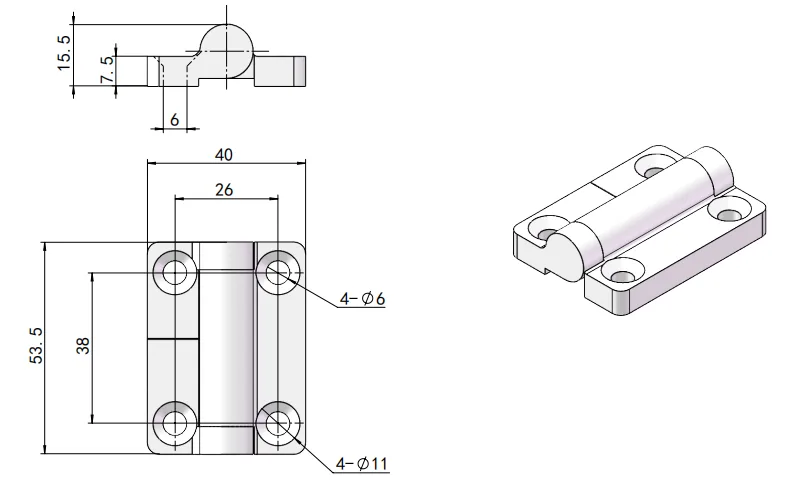

Drawings
FAQ
XG11-123 Torque Hinge: Custom Torque or Colors?
Yes! Custom torque values, colors (beyond standard black/matte), and laser logos available. Contact us for small-batch orders.
Are You the XG11-123 Manufacturer? Can I Get CAD Files?
Yes, we’re the factory. Downloadable 2D/3D CAD files (STEP, IGES) available for easy integration and evaluation.
XG11-123 Torque Hinge Delivery Time?
Standard finishes ship fast: 7-15 business days. Custom/bulk orders ship under 3 weeks.
Does XG11-123 Need Lubrication or Maintenance?
No. Its sealed, maintenance-free design requires no lubrication. Just dust regularly to prevent jams.
Where to Use XG11-123? Installation Tips?
Perfect for control cabinets, medical devices, server doors. Use M6 screws on flat surfaces for stable torque.
