Round Adjustable Torque Hinge – Compact, Precise, 180° Rotation
PRODUCT PARAMETERS
Description

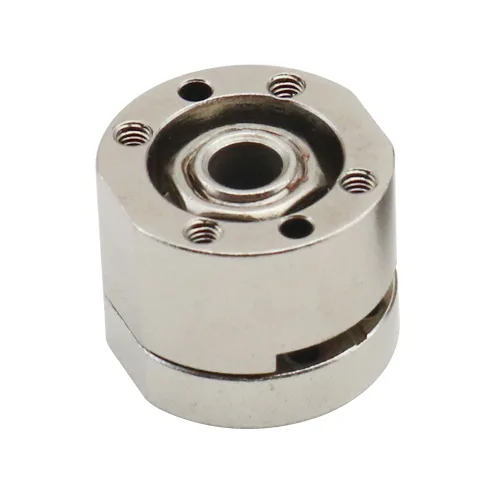

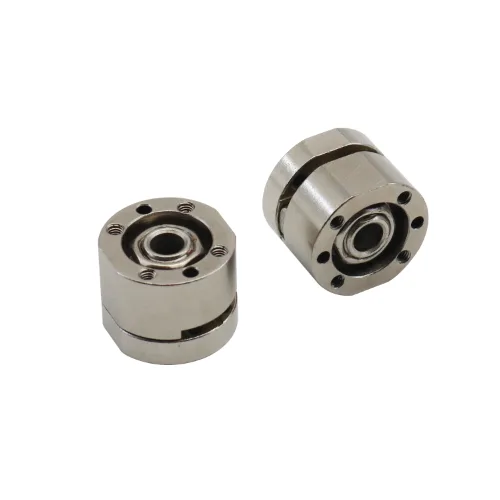

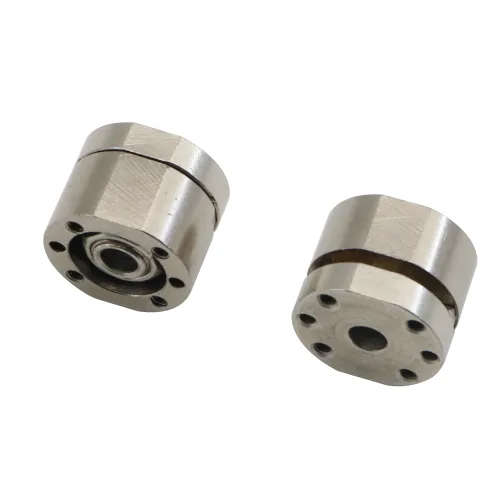

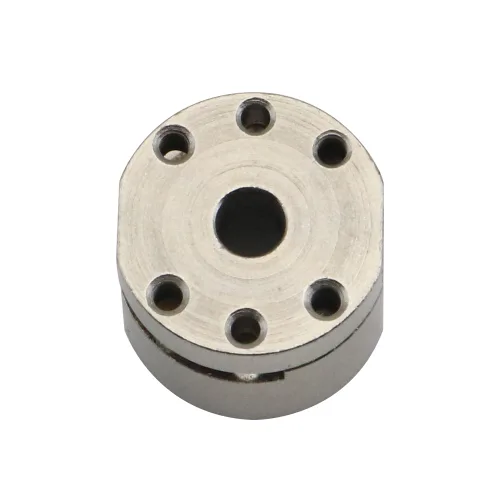

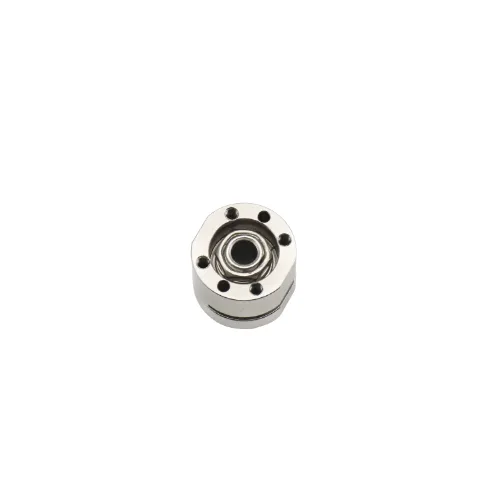

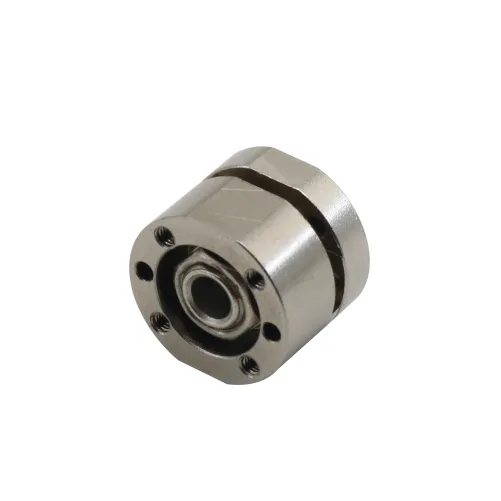

XG11-080 Round Adjustable Torque Hinge: Versatile Performance
The XG11-080 round adjustable torque hinge delivers precise control. It offers ±180° rotation in both directions. Torque is smoothly adjustable from 0.1–1.0N·m.
This adjustable torque hinge features durable 1215 steel. It has a sleek nickel-plated finish. The compact circular design saves critical space.
Ideal Applications for the Adjustable Torque Hinge:
- Consumer Electronics: Provides smooth laptop opening/closing. Perfect for foldable device lids. Essential for adjustable camera mounts and VR headsets.
- Medical Devices: Ensures quiet operation for portable diagnostic units. Reliable in display mounts. Ideal for light-torque medical adjustments.
- Industrial Equipment: Secures HMI panel angles. Used in instrument covers. Supports monitoring device positioning.
- Smart Home/Building: Adjusts airflow vents smoothly. Integrates into control panel covers. Fits modular console designs.
- Automotive: Enables stable rotation for in-vehicle displays. Functions in seat accessories. Works within motorcycle compartment panels.
| Code | Part Number | Torque (N·m) | Material | Surface Finish |
|---|---|---|---|---|
| XG11-080 | XG11-080-10 | 1.0 | 1215 | Nickel Plated |

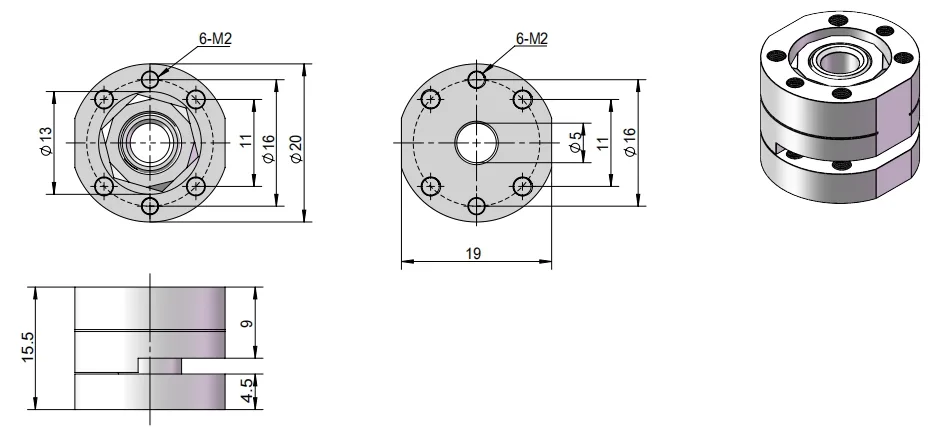

Drawings
FAQ
Can torque be preset before shipment?
Yes. Provide your required torque (0.1–1.0 N·m) when ordering. We pre-set it at the factory for plug-and-play use.
Is this hinge suitable outdoors or in corrosive environments?
Partially. Its nickel-plated 1215 steel offers basic corrosion resistance. For harsh conditions, choose our custom stainless steel version.
How to install the XG11-080 hinge?
It supports integrated installation: screw-fixing or press-fitting into pre-machined holes. We provide full drawings for design-stage space planning.
Does it need regular maintenance/lubrication?
No frequent upkeep needed. Its sealed mechanism requires no lubrication. For high-frequency use, annual checks ensure long-term stability.
Do you support small-batch orders for sampling?
Yes. We accept small quantities for prototyping, verification, or R&D. Request samples via our website or contact sales for quotes.
