Torque Hinge with Cable Port – 0–6.0 N·m Adjustable Range
PRODUCT PARAMETERS
Description
XG11-114 Adjustable Torque Hinge
This XG11-114 Adjustable Torque Hinge delivers precise positioning. It features durable nickel-plated steel construction. Left or right-hand versions are available.
- Easy Installation: Use M4 and M3 screws
- Integrated Cable Ports: 7.3mm for streamlined routing
- Torque Range: Maintain stable holds from 0 to 6.0 N·m
- Smooth Action: Ensures consistent, fluid movement
- Built for Demanding Applications
Effective Applications:
- Medical displays & equipment covers – secure positioning
- Industrial control panels – safe access
- Communication housings – easy cable routing
- Vehicle panels – vibration resistance
- Self-service terminals – reliable angle control
- Furniture systems – premium feel
Customization Options:
Tailor torque, orientation, or mounting. Perfect for tight spaces needing reliable motion control.
| Code | Part Number | Torque (N·m) | Material | Surface Finish |
| XG11-114 | XG11-114R | 0–6.0 | 1215 | Nickel Plated |
| XG11-114L | ||||
| XG11-116 | XG11-116-40 | 0–4.0 |
Drawings

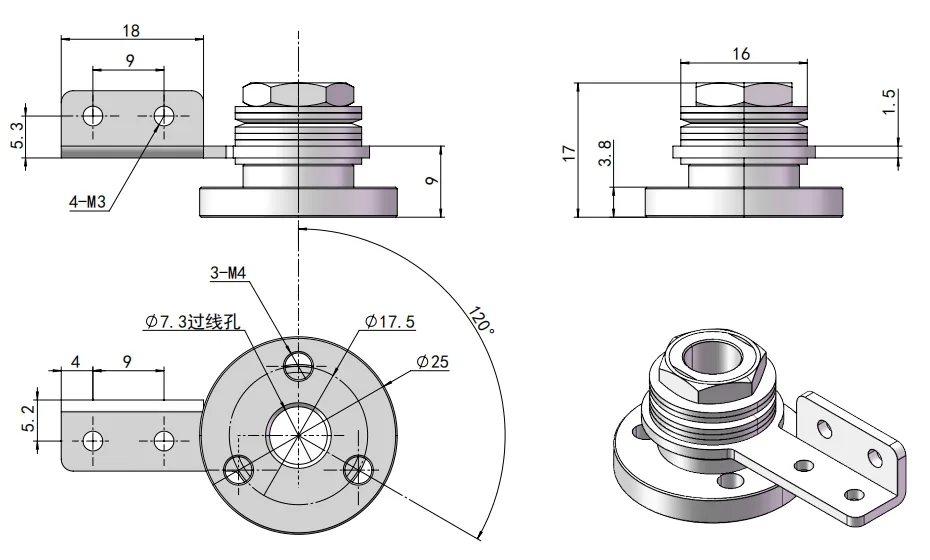

XG11-114L Dimension Drawing

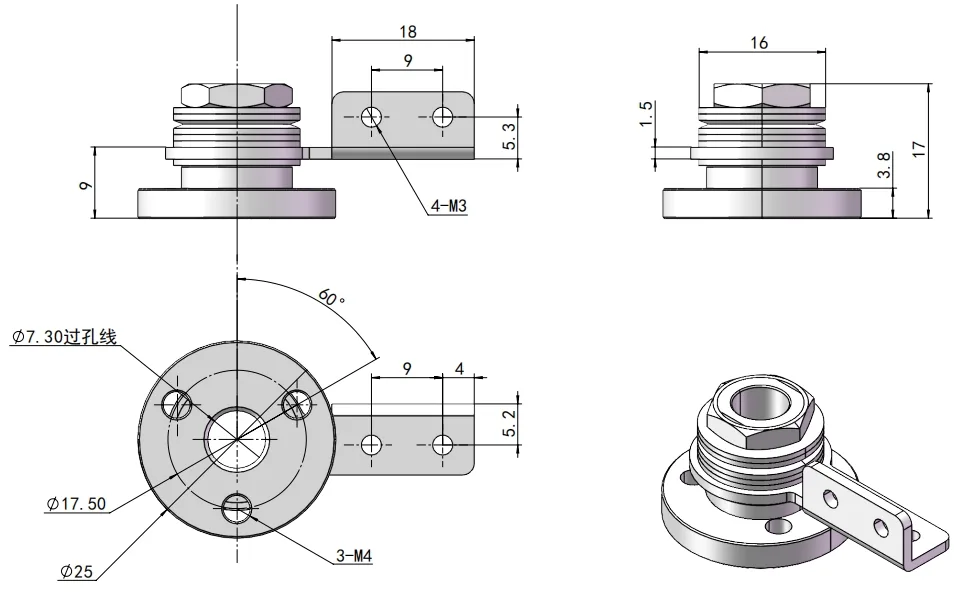

XG11-114R Dimension Drawing

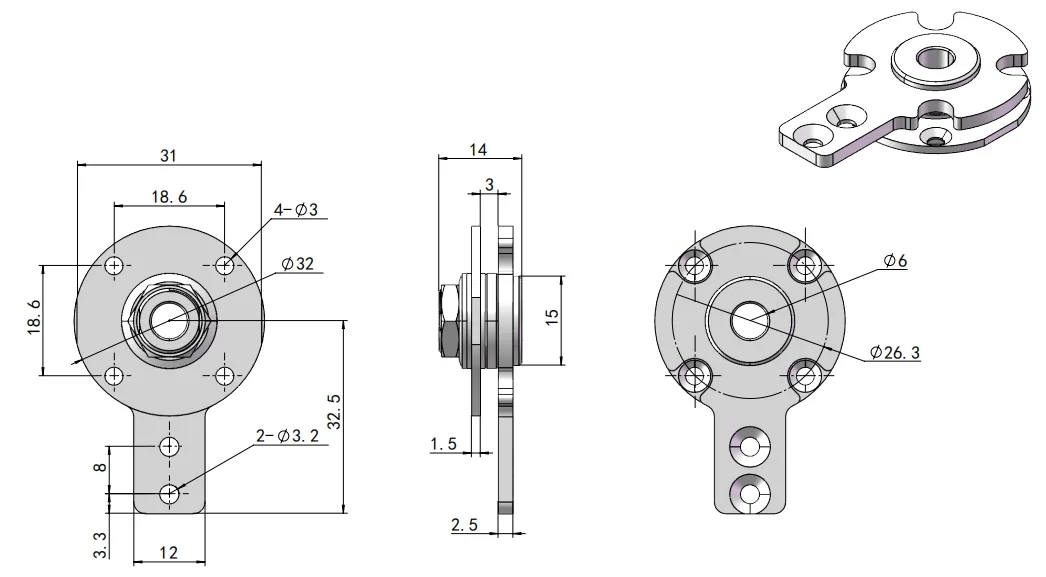

XG11-116 Dimension Drawing
FAQ
What Custom Options Exist for XG11-114/116 Adjustable Torque Hinge?
We customize the XG11-114/116 adjustable torque hinge extensively. Specify torque (0–6.0 N·m), left/right orientation, or mounting style. Need unique finishes like nickel plating? Share your device requirements. We engineer non-standard solutions for tight spaces or heavy loads.
Are You the Direct Manufacturer of XG11-114/116 Hinges?
Yes, we produce the XG11-114/116 torque hinge in our 7,000㎡ factory. We handle design, machining, and assembly in-house. Rigorously tested, these hinges suit medical gear, industrial panels, and telecom cabinets. OEM/ODM partnerships welcome.
How to Maintain the XG11-114/116 Adjustable Torque Hinge?
The XG11-114/116 hinge is maintenance-free. Its sealed design requires no lubrication. Simply check M3/M4 screw tightness periodically. Always operate within its torque range. This preserves smooth motion and long-term reliability.
Where is the XG11-114/116 Torque Hinge Typically Used?
Deploy the XG11-114/116 adjustable hinge where precision matters: medical displays, control panels, or vehicle doors. It excels in self-service kiosks and telecom racks. Vibration-prone environments? This hinge holds angles securely.
How to Install the XG11-114/116 Adjustable Torque Hinge?
Mount this XG11-114/116 torque hinge using M4 or M3 screws. Select left/right-hand versions first. Align the hinge axis correctly. Distribute load evenly. Avoid over-tightening or misalignment. Protects hinge integrity.
Key Benefits of the XG11-114/116 Adjustable Torque Hinge?
The XG11-114/116 adjustable hinge delivers:
Adjustable torque (0–6.0 N·m).
Corrosion-resistant nickel-plated steel.
Integrated 7.3mm cable port.
Stable in narrow spaces. Perfect for industrial precision.
What’s the Lead Time for XG11-114/116 Hinges?
Stock XG11-114/116 torque hinges ship in 7–15 business days. We support small batches for testing. Large ODM orders? We schedule production proactively. Ensures on-time project delivery.
