XG11-120 Torque Hinge, 0–90°/360° Rotation, 14mm Cable Hole
PRODUCT PARAMETERS
Description
XG11-120 Adjustable Torque Hinges: Perfect for smooth, controlled rotation and clean cable management. Choose your model: 90° stops (XG11-120-1) for secure access panels, or 360° free rotation (XG11-120-2) for displays and sensors. Easily adjust the torque (0–12 N·m) to match your load. The rugged design includes a 14 mm center hole for wires or tubing. Ideal for industrial automation, medical equipment, and enclosures needing precise positioning and hassle-free routing. A true workhorse hinge.
| Code | Part Number | Material | Surface Finish | Torque (N·m) | Rotation Angle |
| XG11-120 | XG11-120-1 | 1215 | Nickel Plated | 0 – 12 | 90° rotation with stop |
| XG11-120-2 | 0°–360° rotation |

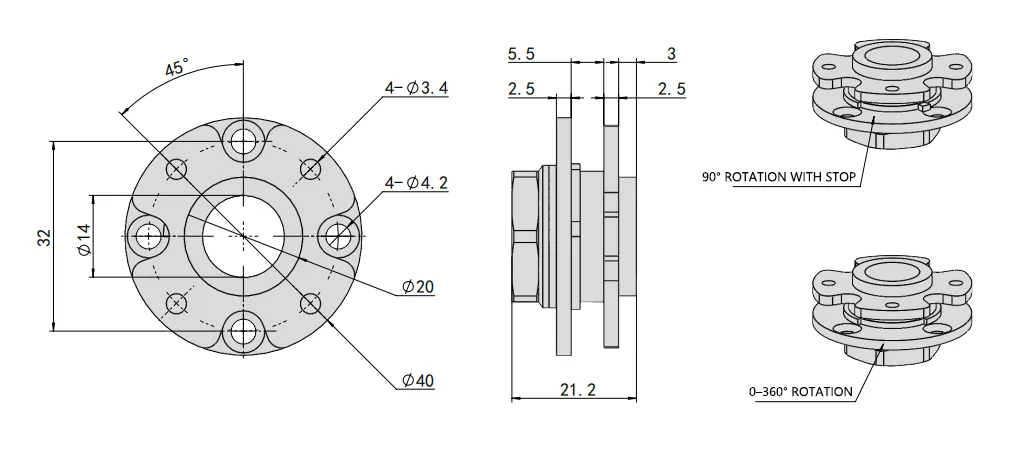

Drawings
FAQ
Q1: What’s the lead time for XG11-120 hinges?
A: Standard models ship within 7–15 business days. Custom orders may take longer.
Q2: Can torque, rotation angle, or center hole be customized?
A: Yes! We can customize torque, stop angles, cable ports, and mounting options. Contact sales with your specifications.
Q3: Who manufactures XG11-120 torque hinges?
A: They are made by HTAN – a professional industrial hardware manufacturer since 2015.
Q4: How is the XG11-120 hinge installed?
A: Simple screw mounting. Adjust the torque according to the instructions for smooth rotation.
Q5: Where is this hinge typically used?
A: Ideal for medical devices, industrial cabinets, displays, and enclosures that require precise positioning.
