Stainless Steel Torque Hinge XG11-021 for Precision Applications
PRODUCT PARAMETERS
Description

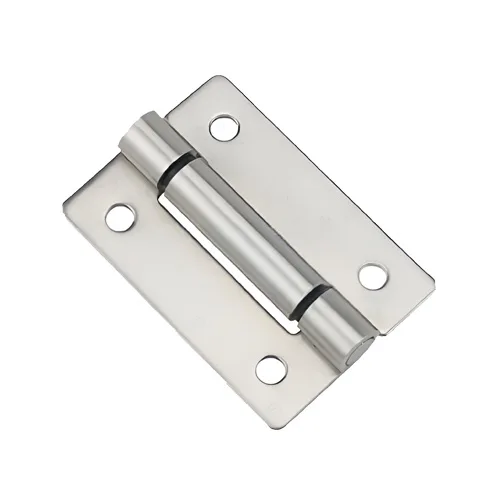

XG11-021 Stainless Steel Torque Hinge
Crafted from durable, corrosion-resistant 304 stainless steel with vibratory polishing for enhanced looks and oxidation resistance. Offers selectable torque (0.5N·m, 1.0N·m, 2.0N·m) and 360° smooth rotation. Its key feature: true free-stop positioning at any angle, eliminating external locks. Ideal for demanding applications requiring reliable, frequent adjustment and position hold in industrial automation, medical equipment, communications, aerospace, consumer electronics, and high-end cabinetry. Simplifies design, boosts durability.

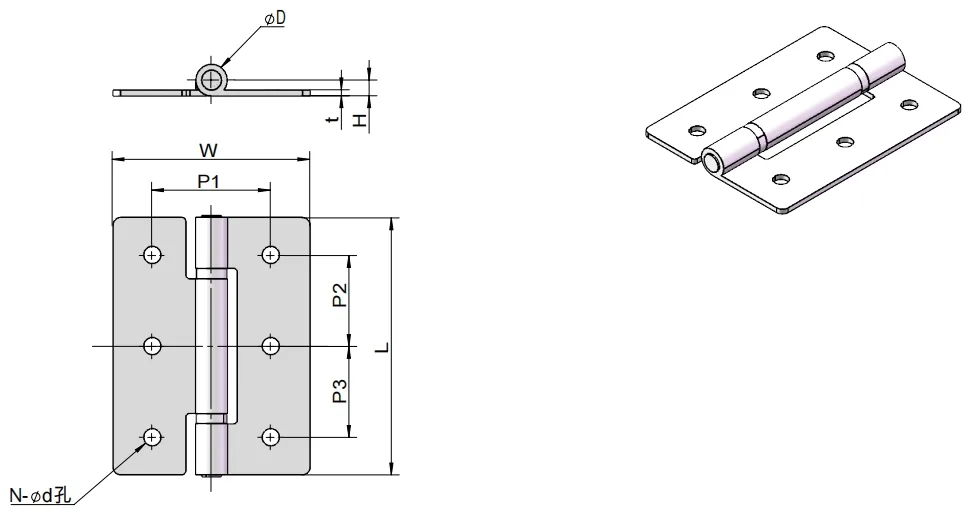

Drawings
| Code | Part Number | Torque (N·m) | L (mm) | W (mm) | H (mm) | t (mm) | P1 (mm) | P2 (mm) | P3 (mm) | D (mm) | d (mm) | N (pcs) | Material | Surface Finish |
| XG11-021 | XG11-021-1 | 2 | 90 | 60 | 5.5 | 2 | 38 | 35 | 35 | 11 | 6.4 | 6 | SUS304 | Vibration Polished |
| XG11-021-2 | 1 | 65 | 50 | 4 | 1.5 | 30 | 23 | 23 | 8 | 4.3 | 6 | |||
| XG11-021-3 | 0.5 | 50 | 35 | 3.5 | 1.5 | 22 | 34 | — | 7 | 4.3 | 4 |
FAQ
Q: What’s the lead time for XG11-021 torque hinges?
A: Standard models (0.5N·m, 1.0N·m, 2.0N·m) are usually in stock, shipping in 7-15 business days. For bulk orders or special packaging, contact us first to confirm timing.
Q: Can torque or dimensions be customized for my project?
A: Yes. We offer custom torque, size adjustments, and material swaps (like 304L or 316 stainless steel). Share your drawings and application details with engineering for evaluation.
Q: Are you the manufacturer or a distributor?
A: We are the direct manufacturer with full CNC, assembly, and QC processes. All hinges are rigorously factory-tested for performance and lifespan. Test reports and material certs available.
Q: What’s the lifespan of the XG11-021 hinge? Does it need maintenance?
A: This all-metal hinge lasts 10,000+ cycles (depends on use). It’s virtually maintenance-free under normal conditions – no grease leaks. Ideal for long-term industrial use.
Q: Is the product export-ready? Does it meet international standards?
A: Yes, we export globally (US, EU, Japan, SEA). Made with SUS304, compliant with RoHS & REACH. We provide English docs, marking, and export packaging.
