Three Adjustable Torque Hinges with Cable Pass-Through Holes
PRODUCT PARAMETERS
Description
Adjustable torque hinges with integrated cable routing. Ideal for dynamic panels requiring clean wire management.
Adjustable Torque Hinges Comparison
| Model | Material | Torque | Cable Hole | Primary Use Case |

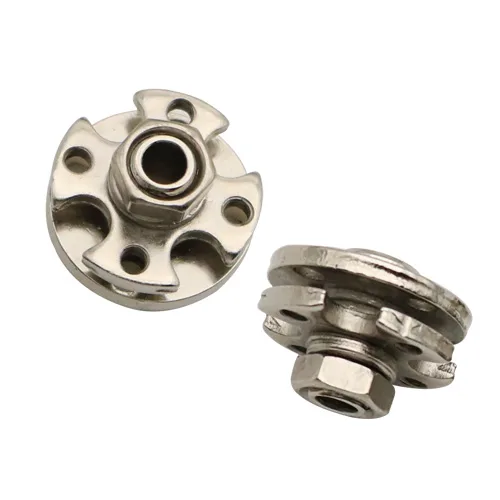

| XG11-117 | 1215 | 0-2.0 N·m | Ø 3.8 mm | Thin signal cables |
| (Medical probes, portable devices) | ||||

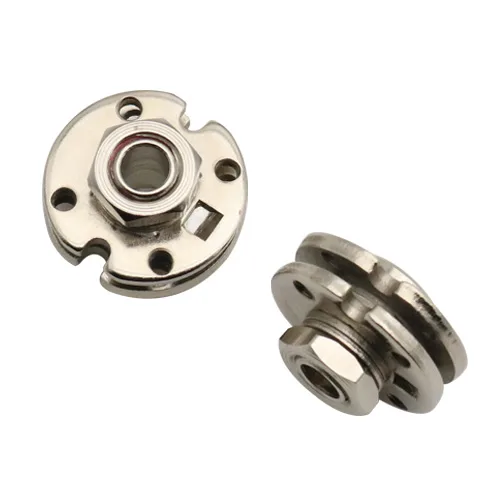

| XG11-118 | Ø 4.7 mm | Standard power cords | ||
| (Medical carts, POS terminals) | ||||

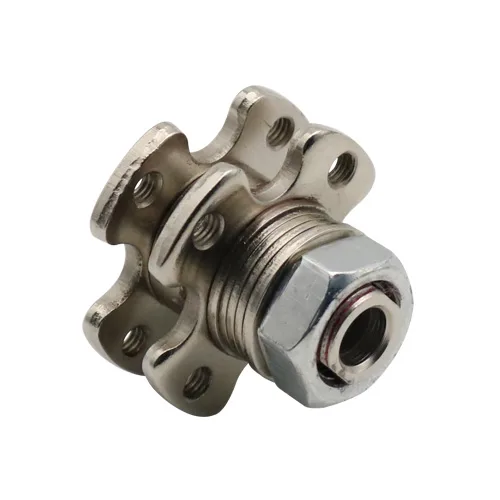

| XG11-106 | 0-12.0 N·m | Ø 7 mm | Heavy loads & industrial cables | |
| (HMI consoles, robotic panels) |
Drawings

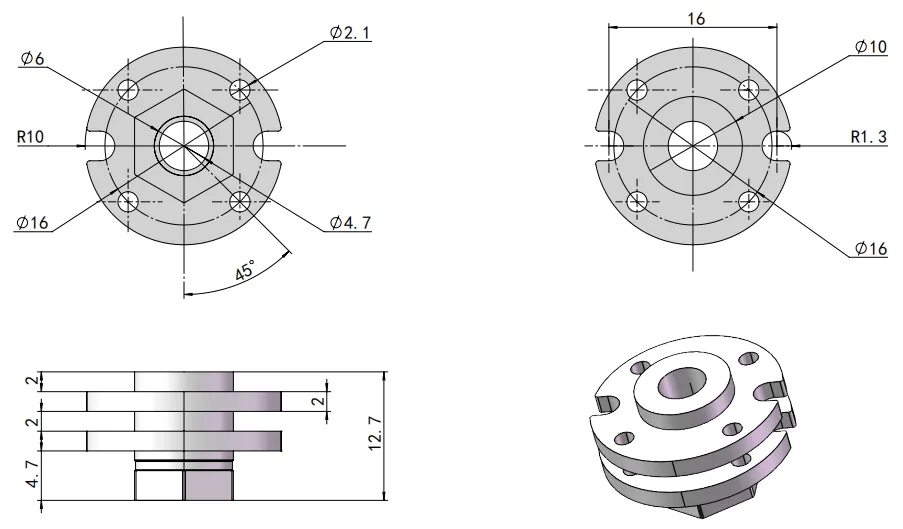

XG11-118 Adjustable Torque Hinge Dimension Drawing

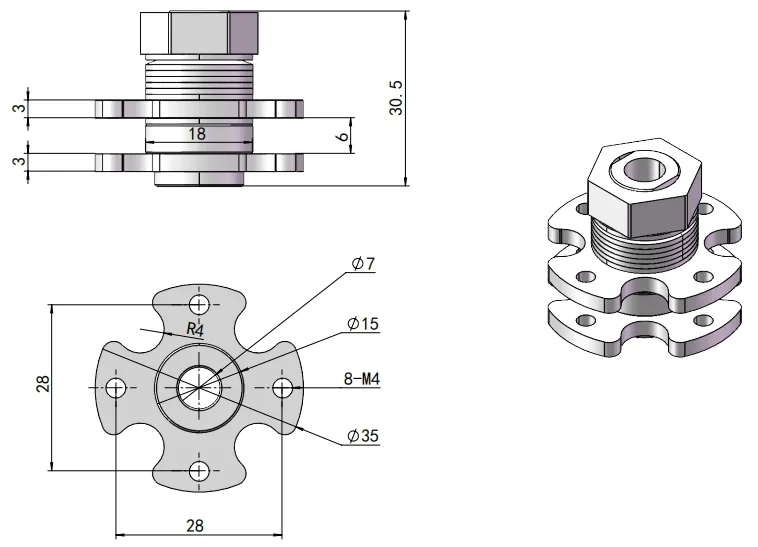

XG11-106 Adjustable Torque Hinge Dimension Drawing

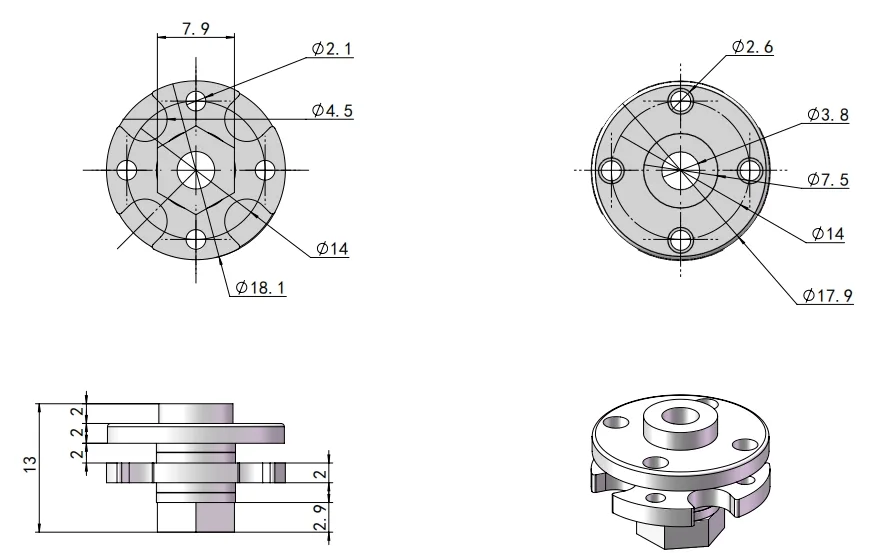

XG11-117 Adjustable Torque Hinge Dimension Drawing
FAQ
Q: How to quickly select among the three models?
A: Choose based on load/torque and aperture.
Use models 117/118 for 0–2 N·m torque.
Opt for model 106 for higher torque or thicker harnesses.
Q: Daily maintenance and cleaning steps?
A: Clean and test torque every 6 months.
Prevent moisture and rust.
Replace immediately if loose, noisy, or torque drifts.
Q: Matching wire harnesses to aperture sizes?
A: 3.6mm fits thin signal wires.
4.7mm suits standard power cables.
7mm handles thick bundles or sheathed wires.
Q: Transport and storage protection?
A: Use single-unit foam + moisture bag + rust inhibitor.
Add corner guards and shock warnings on outer boxes.
Store dry at ≤25°C (≤77°F).
Q: Customization options and lead times?
A: Customize torque, aperture, stoppage angle, or surface finish.
Samples: 7–15 days.
Bulk production: confirmed after drawing approval.
