Network Cabinet Security: Why Top-Tier Data Centers Prioritize Concealed Hinges

The Critical Role of Concealed Hinges

The Physical Defense Paradox I’ve audited hundreds of data centers, and a dangerous paradox persists: enterprises spend millions on firewalls yet overlook the most basic physical defense. ISO/IEC 27001 is clear—physical security is just as critical as code. The server cabinet is your data’s final fortress, but it has a hidden backdoor.

Why Your Biometric Lock Might Fail Many engineers assume expensive RFID or biometric locks ensure safety. This is a dangerous misconception. In my experience, if your cabinet uses external hinges, I don’t need to touch your lock. I can simply remove the external hinge pin and take down the entire door in under 30 seconds.

The Solution: Why Concealed Hinges? We won’t waste time on basic definitions here. Instead, this article analyzes why Concealed Hinges are the only viable solution to close this loophole. We will explore how this specific hardware upgrade enhances physical security, optimizes airflow for Tier 3 standards, and eliminates the “30-second break-in” risk entirely.

Physical Security Challenges in Modern Data Centers

Strict Compliance Requirements

When selecting cabinets, we must refer to international standards.

• ISO/IEC 27001 (A.11.1): This clause specifically addresses “Physical and Environmental Security.” It requires us to prevent unauthorized physical access, damage, and interference.
• PCI DSS (Requirement 9): For institutions handling payment card data, physical access to network devices must be restricted.
• GDPR: Similarly emphasizes the physical protection of data storage media.

If your cabinets use external hardware that is easily disassembled, you may fail the strict audits required by these standards.

The Fatal Weakness of Traditional Design: External Risks

We must face the risks of traditional External Hinges squarely.

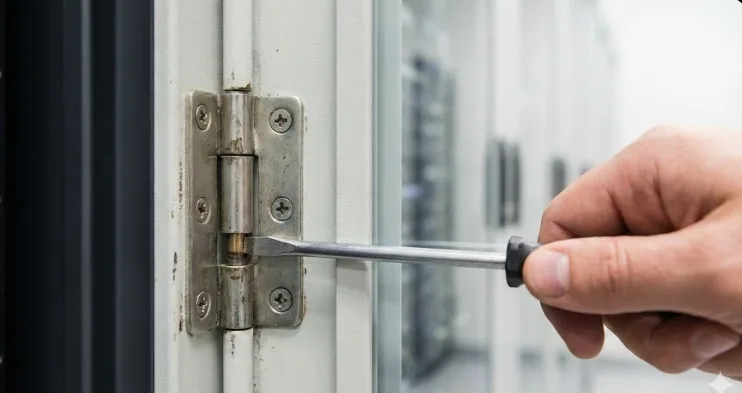

• Pin Removal Attacks: The pins on many standard external hinges are exposed. An attacker only needs a simple screwdriver and a hammer to knock the pin out.
• Mounting Destruction: If the mounting screws of the hinge are exposed on the outside of the cabinet, an attacker can directly unscrew them.

During my Penetration Testing exercises, bypassing high-end electronic locks on cabinets with external hinges was incredibly easy.

The Overlooked Internal Threat

We usually assume threats come from the outside. However, data indicates that a significant number of security breaches originate from internal personnel.

• Maintenance Staff: Technicians have permission to enter the server room, but this does not mean they should have permission to open every cabinet.
• Malicious Operations: If the hardware design allows for non-destructive disassembly, internal staff with partial access rights could contact servers without leaving a trace.

Therefore, we need a “Tamper-proof” hardware solution.

Technical Configuration and Working Principle of Concealed Hinges

What is Industrial-Grade Concealed Design?

I will not recite textbook definitions here. From an engineering application perspective, a concealed hinge (also known as an internal hinge) is a device where all mechanical structures are located completely inside the cabinet when the door is closed.

Key Features:

• Invisible from Outside: From the exterior of the cabinet, you cannot see any hinge parts, pins, or mounting screws.
• Internal Mounting: The hinge body is welded or screwed onto the inner flange of the cabinet frame.

Material Selection and Structural Strength

When selecting hinges for high-density server cabinets, we cannot use ordinary residential hardware. I recommend referring to the UL 2416 standard (Audio/Video, Information and Communication Technology Equipment Cabinet, Enclosure and Rack Systems).

Based on my experience, the following materials are the best choices:

• 316 Grade Stainless Steel (SS316): Suitable for data centers in coastal or high-corrosion environments.
• Zinc-Plated Carbon Steel: Suitable for standard temperature-controlled server rooms, providing extremely high tensile strength.
• Zinc Alloy (Die-cast Zinc): With powder coating treatment, this strikes a balance between cost and strength.

Engineering Considerations for Mounting Locations

We install hinges between the cabinet Uprights and the door stiffeners. This installation method utilizes the structural strength of the cabinet frame itself, rather than relying solely on the sheet metal thickness of the door. This is crucial for preventing heavy doors from sagging.

Core Benefit 1 — Enhancing Physical Security

Eliminating External Attack Points (Zero External Attack Vectors)

This is the primary reason I recommend concealed hinges.

Specific Security Logic:

• No Leverage Points: Since the external surface is flush, attackers cannot use pliers, wrenches, or hammers to manipulate the hinge.
• Inaccessible Screws: All fasteners are located inside the cabinet. These screws can only be accessed after the door has been legally opened.

This design raises the difficulty of “tool-based intrusion” to the highest level. This aligns with the advanced requirements for Resistance Class in the EN 1627 standard.

Minimizing Pry Points

In security engineering, a gap is a vulnerability.

Traditional Problem: External hinges usually require a large gap between the door panel and the frame to accommodate the movement trajectory of the pivot. This gap easily becomes an insertion point for a crowbar.

Concealed Advantage:

• Tight Fit: High-quality concealed hinges (especially multi-link structures) allow the gap between the door and frame to be controlled within 2mm.
• Anti-Pry: Extremely small gaps make it difficult for attackers to gain a leverage fulcrum. This directly increases the difficulty of brute-force destruction of the door.

Synergy with Multi-Point Locking Systems

Single-point locking is not enough. I always advise clients to adopt “Systematic Defense.”

Synergy Effect:

• Concealed Hinge + Rod Latch System: The hinges secure one side of the door, while the rod latch secures the other three directions (top, bottom, side).
• Result: This forms a four-sided locked enclosure system. Even if an attacker cuts one locking point, the door still cannot be opened.

Core Benefit 2 — Environmental Control and Aesthetic Design

Optimizing Airflow Management

In modern data centers, PUE (Power Usage Effectiveness) is a core KPI. You might not expect that hinges affect the electricity bill.

Sealing Issues:

• External Hinges: Usually require cutting the gasket on the door panel to accommodate the hinge mounting position. These break points are channels for cold air leakage.
• Concealed Hinges: Allow for the continuous, uninterrupted installation of the gasket.

Energy Efficiency Impact: According to my test data, maintaining good cabinet airtightness prevents Bypass Airflow (mixing of hot and cold aisles). This helps increase the return air temperature of the air conditioning system, thereby improving cooling efficiency. For cabinets requiring NEMA 4 or IP65 ratings, continuous sealing is mandatory.

Visual Uniformity in Modern Data Centers

Although function comes first, appearance cannot be ignored.

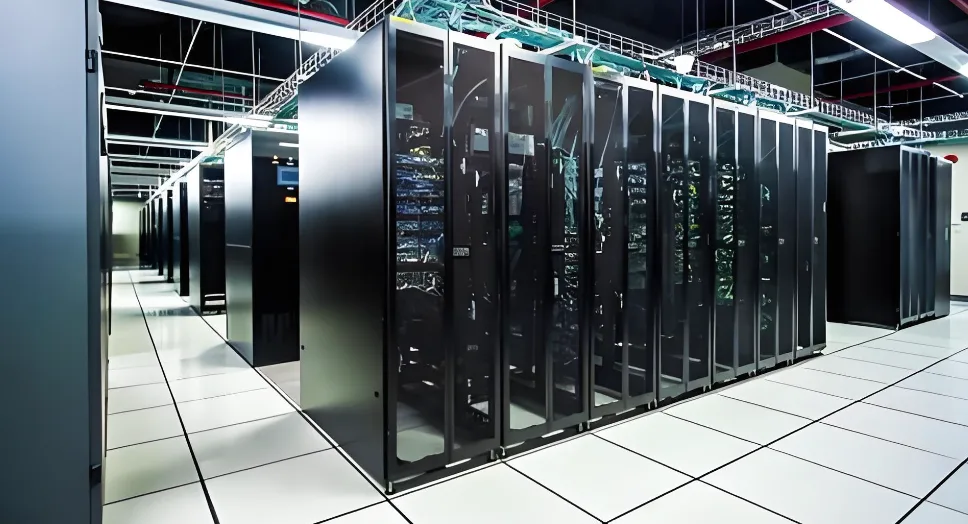

Flush Surface Advantage: In large data centers, hundreds or thousands of cabinets are arranged in rows. Using concealed hinges, the front of the cabinet is completely flush. This is not just valid for aesthetics; it has practical operational significance.

Anti-Snagging: This is a detail involving Occupational Health and Safety (OHS).

• Scenario: Technicians move server carts through narrow hot and cold aisles.
• Risk: Protruding external hinges easily snag clothing, cables, or carts.
• Solution: Concealed design eliminates these protrusions, reducing the risk of accidents and equipment cables being torn out.

Technical Comparison: Concealed Hinges vs. External Hinges

To illustrate this more intuitively, I have compiled the following comparison data. This is an assessment based on actual engineering applications.

Security

• Concealed Hinges: Extremely High. Tamper-proof, no external pins, meets high security level requirements.
• External Hinges: Medium/Low. Pins are easily knocked out, screws are easily unscrewed, physical vulnerabilities exist.

Sealing & Protection

• Concealed Hinges: Excellent. Supports continuous gaskets, easy to achieve IP65/NEMA 4 ratings.
• External Hinges: Average. Gaskets usually need to be broken, easily causing airflow leakage or dust entry.

Installation Complexity

• Concealed Hinges: Higher. Requires precise sheet metal design, usually requires welding studs or reserving specific space.
• External Hinges: Low. Only requires drilling holes in the surface and fixing with screws; lower requirements for sheet metal precision.

Opening Angle

• Concealed Hinges: Limited but Sufficient. Typically 110° to 135°; high-end multi-link models can reach 180°.
• External Hinges: Large. Typically achieve 180° or even 270° opening with ease.

Cost Analysis

• Concealed Hinges: Higher Initial Cost. Hardware unit price is high, installation time is slightly longer.
• External Hinges: Low Initial Cost. However, under high security demands, the long-term risk cost is extremely high.

My Recommendation: If your project is a Tier 3 data center, financial server room, or telecommunications base station, do not save money on hinges. In the long run, the losses caused by security loopholes far exceed the price difference of the hinges.

Selection Guide: How to Select Concealed Hinges for High-Density Cabinets

Not all concealed hinges are the same. During the procurement phase, I recommend focusing on the following three technical indicators.

Load Rating and Safety Factor

Server cabinet doors are getting heavier. For noise reduction and cooling, we often add soundproofing foam or even Rear Door Heat Exchangers (RDHx) to the doors.

Operational Advice:

• Do not just look at the net weight of the door.
• Calculation Formula: Hinge Rated Load > (Door Weight + Accessory Weight) × 2.
• We must reserve a 2x Safety Factor to prevent the door panel from sagging after long-term use.

Opening Angle and Maintenance Aisles

You need to check the floor plan of the server room.

Operational Advice:

• If the cabinet is located in a narrow aisle, a 120° opening angle is usually sufficient.
• If large servers need to be pulled out from the side, or if cabinets are arranged tightly side-by-side, I recommend selecting Multi-linkage Concealed Hinges. These hinges can translate and rotate the door panel, achieving an opening close to 180° without hitting the adjacent cabinet door.

Quick Release Function

This is a key feature for improving O&M efficiency.

• Scenario: Sometimes we need to completely remove the cabinet door to move large equipment (such as UPS power supplies).
• Technical Requirement: Choose concealed hinges with a Spring-loaded pin mechanism.
• Advantage: O&M personnel can remove the door panel in 10 seconds without tools while the door is open. Note that this can only be operated when the door is in the “open” state, so it does not affect security.

Conclusion

Building a Defense System from the Details

Through the analysis above, we can reach a clear conclusion: in modern data center design, the hinge is no longer just a connector; it is a core security component.

Summary of Comprehensive Advantages

Concealed hinges provide three major advantages that traditional external hinges cannot match:

1. Physical Defense: Eliminates external disassembly risks, complying with ISO 27001 requirements.
2. Energy Efficiency: Supports continuous sealing, optimizes airflow, and lowers PUE values.
3. Industrial Design: Provides a flush, snag-free safe operating environment.

Actionable Advice

If you are a data center manager or procurement manager, I suggest you take the following actions immediately:

• Audit: Check the hinge types of your existing core cabinets.
• Upgrade: For cabinets storing critical data, if external hinges are currently used, evaluate installing internal locking devices or switching to cabinets designed with internal hinges during the next hardware refresh cycle.
• Specify: Write “Concealed Hinges” into your next cabinet procurement Request for Quotation (RFQ).

FAQ

Q1: Do concealed hinges limit the opening angle of the cabinet door?

Answer: This depends on the specific model. Basic concealed hinges typically provide an opening angle of 110° to 120°. However, by selecting concealed hinges with an Offset Axis or Multi-link design, we can fully achieve a 180° opening. This ensures that server maintenance personnel have enough operating space and does not obstruct the extraction of equipment slide rails.

Q2: Do concealed hinges support heavy cabinet doors?

Answer: Yes, they do. This is a common misconception that concealed hinges are fragile. In fact, industrial-grade concealed hinges are designed specifically for high loads. Models made of stainless steel or high-strength steel can have a load capacity of 25kg to 50kg per single hinge. Installing 3 to 4 hinges on a standard door panel is sufficient to support heavy doors equipped with cooling fans or insulation layers.

Q3: Can I retrofit concealed hinges onto old cabinets?

Answer: To be frank, this is very challenging. Concealed hinges usually require the cabinet frame to have specific bending shapes or reserved space. If your old cabinet was designed for external hinges, retrofitting concealed hinges may involve cutting and welding, which destroys the cabinet coating and increases the risk of rust. For upgrading old cabinets, I recommend installing internal anti-theft latches rather than forcing a hinge replacement. Concealed hinges are best integrated into the design during the manufacturing stage.
