A Technical Comparison of Industrial Enclosure Hinges: Lift-Off vs. Fixed Designs

In the process of industrial cabinet design and procurement, the selection of industrial enclosure hinges plays a critical role in end-user experience and long-term reliability.From the perspective of a senior industry consultant, this article provides a detailed comparison between Lift-off Hinges and Fixed Hinges. We will provide specific selection recommendations based on load testing data, field maintenance efficiency analysis, and relevant international technical standards (e.g., UL 50E, IEC 60529). This guide aims to help engineers find the optimal balance between cost, performance, and ease of maintenance.

Introduction

The Critical Role of Industrial Cabinet Hardware

Throughout my career, I have witnessed countless expensive industrial control systems suffer serious consequences due to low-cost hardware. A hinge—especially industrial enclosure hinges—is not merely a mechanical component connecting the door to the cabinet; it is the first line of defense in maintaining the enclosure’s Protection Rating (IP Rating).

Door sag caused by poorly designed hinges can compromise gasket sealing and hinder field operation. Although such hardware accounts for less than 1% of the BOM, NIST research shows that failure-driven maintenance can exceed the hardware’s value contribution by several times. As outlined in NIST AMS 100-34, reactive maintenance is typically 2–5 times more costly than planned maintenance.

The Impact of Hinge Selection on Equipment Lifecycle

Selection decisions should not be based solely on the initial purchase price. We must consider the Total Cost of Ownership (TCO).

• Installation Phase: The hinge type dictates the man-hours on the assembly line.
• Commissioning Phase: If the door can be quickly removed, internal wiring efficiency improves significantly.
• Maintenance Phase: In cramped industrial sites, the ability to quickly remove a door directly correlates to downtime duration.

I recommend introducing “Design for Maintainability (DfM)” principles early in the design phase, treating hinge selection as a critical consideration.

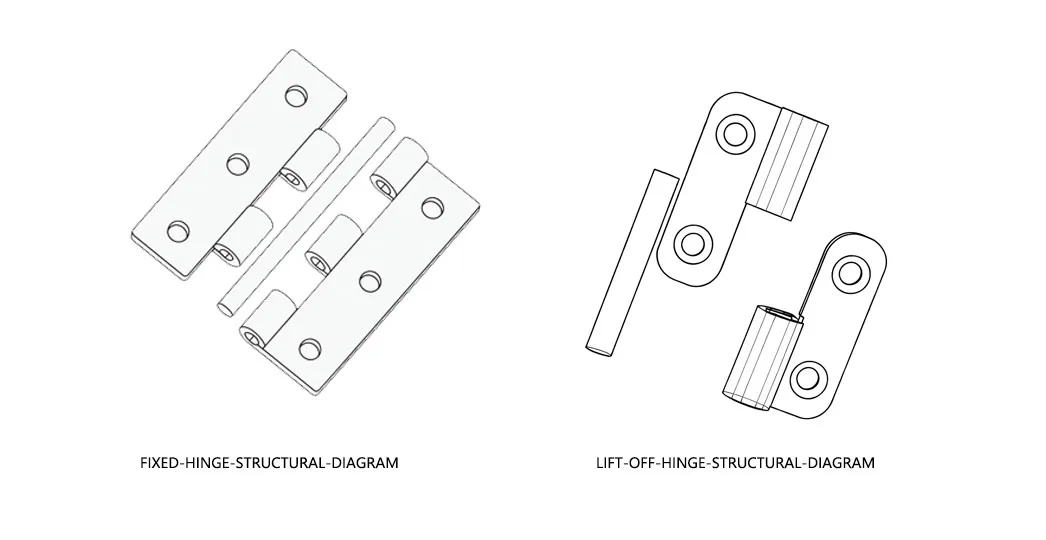

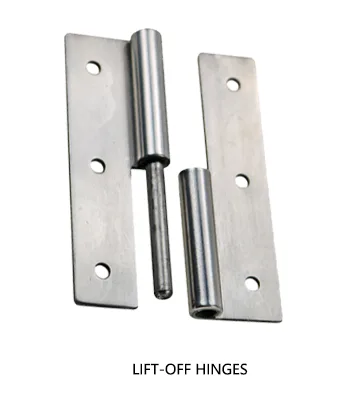

Lift-off Hinges: A Comprehensive Breakdown

Core Advantage: Boosting Installation and Maintenance Efficiency From the perspective of Design for Manufacture and Assembly (DFMA), utilizing lift-off hinges can significantly streamline production workflows compared to traditional hardware:

• Parallel Operations: Doors and cabinet bodies can be painted, punched, and pre-assembled separately, decoupling the manufacturing line.
• Single-Person Operation: When installing the door, a technician simply needs to align the door with the hinge pin and drop it in. There is no need for one person to hold the door while another tightens screws, as is often required with non-detachable hinges.

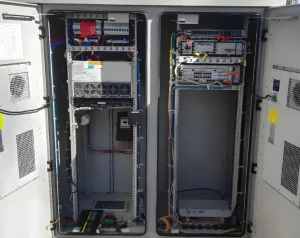

Scenario Analysis: Data Center Retrofits Consider the practical impact in a high-density server room environment. Replacing traditional continuous hinges with die-cast zinc lift-off hinges allows for a more agile maintenance strategy.

Efficiency Gains: This “remove-and-replace” capability eliminates the need for a second technician to support the door during removal, effectively cutting the labor requirement in half for specific maintenance tasks.

The Accessibility Advantage: During hardware upgrades, technicians can simply remove the door to gain 100% access space, rather than working around an open door that blocks narrow aisles.

Technical Limitations: Load and Gap Control

Despite their convenience, we must note their physical limitations:

• Vertical Load Risk: Since the connection relies solely on gravity, there is a risk of the door detaching if the equipment is inverted or subjected to severe jolts during transport.
• Tolerance Accumulation: To ensure smooth lifting, there must be a gap (play) between the pin and the bushing. This can cause slight horizontal displacement of the door when closed, potentially affecting the contact effectiveness of high-grade EMC (Electromagnetic Compatibility) gaskets.

Best-Use Scenarios

Based on IEC 60204-1 (Safety of Machinery) maintenance requirements, I recommend lift-off hinges for the following scenarios:

• Control cabinets in narrow aisles: Where an open door would block the passageway.
• Equipment requiring frequent cleaning: Such as food processing machinery, where doors need to be removed for high-pressure washdowns.
• Light to Medium load doors: Cabinets with a single door weight under 25kg.

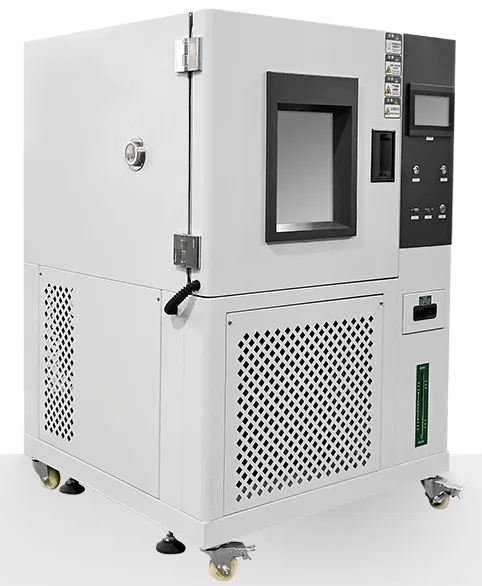

Fixed Hinges: A Comprehensive Breakdown

Core Advantages: High Load Capacity and Security

When a project requires compliance with NEMA 4X or IP66 ratings, I generally lean towards recommending fixed hinges.

• Rigid Connection: Fixed hinges offer tighter tolerance control. This means gasket compression is more uniform, reducing leak points.
• High Load Capacity: By increasing screw hole patterns and lengthening hinge leaves, fixed hinges can withstand extremely high radial and axial loads.
• Vibration Resistance: In high-vibration environments (such as generator housings), fixed hinges do not suffer from the fretting wear often seen in lift-off hinges.

Technical Limitations: Disassembly Complexity

The downside is obvious. If a door needs to be replaced, or fully removed to change large internal components, it typically requires two technicians: one to support the heavy door and another to use tools to remove fasteners. This directly increases labor costs and safety risks.

Best-Use Scenarios

According to UL 508A (Industrial Control Panels), fixed hinges should be prioritized in:

• Heavy-duty outdoor cabinets: Where the door carries heavy air conditioners, displays, or VFDs, with a total weight exceeding 40kg.
• High-security areas: To prevent unauthorized personnel from easily removing the door.
• High-vibration environments: Vehicle-mounted equipment, marine equipment, or compressor rooms.

In-Depth Comparative Analysis

This section directly compares key performance indicators for industrial enclosure hinges, focusing on lift-off and fixed designs

Load Capacity and Physical Strength This is the primary consideration for selection.

Lift-off Hinges: Structurally, these rely on a pin in a cantilever arrangement, making them susceptible to bending moments—especially with wide doors acting as a lever. According to our internal benchmarking of standard zinc-alloy models, the Safe Working Load (SWL) typically peaks between 400N and 800N before deformation occurs.

Fixed Hinges: In contrast, fixed hinges utilize a double-shear structure, offering superior rigidity. Comparative data indicates that fixed hinges of the exact same material grade can consistently withstand loads exceeding 2000N.

My Recommendation: Calculate the total weight of all components mounted on the door and multiply by a safety factor of 1.5. If the result exceeds 30kg, proceed with caution regarding standard lift-off hinges, or consult specific manufacturers for heavy-duty series parameters.

Sealing Performance and Environmental Adaptability

Tested according to EN 12209 or relevant architectural hardware standards:

• Fixed Hinges: Due to minimal axial clearance (usually <0.2mm), they ensure the door consistently compresses the seal. This is ideal for IP65 and above.
• Lift-off Hinges: To facilitate removal, a gap of 0.5mm or larger often exists. This can lead to insufficient gasket compression on the hinge side.
  • Solution: If lift-off hinges are mandatory but high sealing is required, I suggest selecting models with eccentric adjustment, allowing fine-tuning of the door position after installation to compress the seal.

Installation Workflow and Time Costs

I once conducted a time study on a project involving 500 cabinets:

Operation Step	Lift-off Hinge Time (Sec)	Fixed Hinge Time (Sec)	Efficiency Difference
Door Alignment	10	45	Lift-off is 4.5x faster
Fastener Install	0 (Gravity reliance)	60 (Screw tightening)	Lift-off requires no fastening
Door Removal	5	120	Lift-off is 24x faster

The data shows that for scenarios requiring frequent disassembly, the labor cost advantage of lift-off hinges is overwhelming.

Security and Tamper-Resistance

• Fixed Hinges: By installing nuts internally or using security screws, they are nearly impossible to remove from the outside.
• Lift-off Hinges: When the door is closed, most designs prevent removal (as the door frame blocks the upward lifting motion). However, if the door lock is breached and opened, the door can be easily removed and stolen.

Maintenance Costs and Total Cost of Ownership (TCO)

• Short-term Cost: Lift-off hinges generally have a slightly higher unit price than simple fixed hinges, but lower than complex concealed hinges.
• Long-term Cost: If the equipment requires deep maintenance more than 5 times over a 10-year lifespan, the man-hours saved by lift-off hinges will far exceed the difference in purchase price.

Selection Decision Guide

To simplify your decision-making, I have developed the following logic based on specific conditions.

Decision Based on Door Weight

Please follow these threshold standards (based on stainless steel references):

• Weight < 20kg: Strongly recommend Lift-off Hinges. This maximizes operational convenience.
• Weight 20kg – 50kg: Gray area. You can use Heavy-Duty Lift-off Hinges (must strictly verify hinge quantity and spacing) or use Fixed Hinges for safety.
• Weight > 50kg: Must use Fixed Hinges or Continuous Hinges. At this point, manually lifting the door no longer complies with ergonomic safety standards (ISO 11228-1).

Decision Based on Maintenance Frequency

• High-Frequency Maintenance (Monthly or more): If maintenance involves removing the panel, choose Lift-off Hinges.
• Low-Frequency Maintenance (Yearly or less): Fixed Hinges are the more economical and stable choice.

Decision Based on Environmental Requirements

• High Corrosion Environment (Marine, Chemical): Material takes precedence over structure. Recommend 316-grade Stainless Steel Fixed Hinges. The mating surfaces of lift-off hinge pins are prone to accumulating corrosion products, leading to seizing (“frozen” hinges) that prevent future removal.
• Hygienic Environment (Food & Pharma): Lift-off hinges are preferred as they allow for thorough cleaning of dead zones, complying with EHEDG (European Hygienic Engineering & Design Group) guidelines.

Installation Standards and Precautions

Regardless of the hinge chosen, incorrect installation will lead to failure.

Space Reservation and Tolerance Management

For lift-off hinges, the most common issue I find during design reviews is insufficient overhead clearance.

• Design Rule: A net space of at least “Pin Length + 10mm” must be reserved above the door frame. Otherwise, the door will hit the cabinet roof or equipment above when lifted, making removal impossible.

Fasteners and Vibration Dampening

According to DIN 267 fastener standards:

• All hinge mounting screws should use lock washers or be applied with thread locker (e.g., Loctite 243).
• For fixed hinges, it is recommended to use positioning pins or welded studs between the door and frame, rather than relying solely on screw friction to withstand shear forces.

Conclusion

In industrial enclosure design, there is no “perfect” hinge, only the hinge best suited for the specific operating conditions.

To summarize my advice:

• If you seek ultimate assembly efficiency and field maintenance speed, and the door weight is moderate (<25kg), Lift-off Hinges are a smart choice to significantly lower TCO.
• If your application involves heavy loads, extreme vibration, or high security requirements, Fixed Hinges remain the irreplaceable industry standard.

As procurement professionals or engineers, you should establish a specific hardware selection checklist based on the criteria above (Door Weight, Maintenance Frequency, Environmental Rating) during the R&D phase, rather than arbitrarily selecting generic parts at the last minute. Correct hinge selection is the invisible foundation ensuring stable equipment operation for the next decade.
