Torque Hinge Calculation & Selection Guide: Formulas & Standards

Torque hinges (also called friction hinges or free-stop hinges) introduce controllable damping and holding torque into a rotational joint. They allow a lid, cover, display, or door to hold position at a chosen angle without spring-back, while also delivering a smoother and more controlled user experience during opening and closing.

In laptops, industrial service doors, medical display arms, equipment covers, and precision instruments, torque hinges directly affect safety, usability, product lifetime, and perceived quality. A poorly selected hinge may cause sagging, difficult operation, torque fade, or sudden panel drop. A correctly selected hinge improves stability, ergonomics, and long-term reliability.

This guide explains the basic physics of torque hinges, how to calculate required holding torque, how to choose the right hinge type, what materials perform best in different environments, and how to avoid common engineering mistakes in real projects.

Basic Principles of Torque Hinges

Definition and Physical Meaning

Torque is rotational force. In hinge selection, the basic principle is simple: gravity creates a turning force on the panel, and the hinge must generate enough resisting torque to balance it.

The most basic relationship is:

T = F × L

Where:

• T = torque, in N·m
• F = force, in Newtons
• L = perpendicular distance from the hinge axis to the center of gravity

In real hinge structures, the panel’s weight creates a gravitational moment, and the hinge’s internal friction mechanism creates a resisting torque. When hinge torque is equal to or greater than the disturbing torque, the panel can hold position reliably.

Static Torque vs. Dynamic Torque

When selecting a torque hinge, it is essential to separate static torque from dynamic torque.

• Static torque: the torque required to hold the panel stationary at a given angle
• Dynamic torque: the torque required to move the panel during opening or closing

For holding-position design, static torque is the primary value. Dynamic torque matters for user feel, movement smoothness, and the effort required to reposition the panel.

In many products, static torque and dynamic torque are not identical. Some hinges have a higher starting resistance and a slightly lower running resistance. This is one reason why a hinge that looks correct on paper can still feel wrong in actual use if the torque curve is not understood properly.

Working Mechanism

Internally, torque hinges rely on friction pairs, preload, and contact pressure to create consistent resistance. Typical internal constructions use steel, stainless steel, bronze, polymer friction elements, or preloaded elastic parts to generate near-constant damping.

The design goal is simple: the hinge should resist unwanted motion caused by gravity, vibration, or minor external disturbance, while still allowing intentional repositioning by the user.

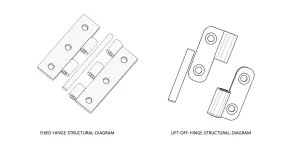

Classification by Structural Form

Key Parameters for Torque Hinge Selection

Basic Quantities Needed

• Mass: measured in kg
• Weight: calculated in Newtons
• Lever arm: the perpendicular distance from hinge axis to the center of gravity
• Angle: the panel position relative to gravity
• Hinge count: the number of hinges sharing the load

The first critical rule is this:

Do not calculate from kg directly. Convert mass to force first.

The correct conversion is:

Weight (N) = Mass (kg) × 9.81

The Core Selection Formula

For hinge holding calculations, the design requirement can be written as:

T_required = Weight × Lever Arm × sin(angle)

In most practical hinge applications, the worst-case condition occurs when the panel is horizontal, because gravity has the largest effective lever arm at that point. In that case:

T_peak = Weight × Lever Arm

To make the design safe for real-world use, a safety factor should then be applied:

T_design = Safety Factor × T_peak

For most industrial applications, a practical safety factor is:

Safety Factor = 1.2 to 1.5

This accounts for wear, torque decay, assembly bias, environmental changes, and unexpected handling loads.

Common Pitfalls

• Using kg instead of Newtons
• Assuming the geometric center is always the center of gravity
• Ignoring the worst-case angle
• Assuming two hinges always share load perfectly equally

For asymmetrical panels, panels with accessories, or panels carrying handles, fans, monitors, or reinforcement structures, always confirm the true center of gravity in CAD before final hinge selection.

Where two hinges are intended to work together, matched hinge pairs are strongly recommended to reduce load imbalance and inconsistent movement feel.

Calculation Examples by Application

Laptop Display Example

Assume:

• Display mass = 0.45 kg
• Weight = 0.45 × 9.81 = 4.41 N
• Lever arm = 0.10 m

Then:

T_peak = 4.41 × 0.10 = 0.441 N·m

With a safety factor of 1.3:

T_design = 0.441 × 1.3 = 0.57 N·m

If two hinges are used, each hinge should typically be sized around:

0.29 N·m per hinge

For medical monitors, imaging devices, and diagnostic equipment, see our more specific guide to torque hinge selection for medical devices.

Industrial Service Cover Example

Assume:

• Steel cover mass = 3.0 kg
• Weight = 3.0 × 9.81 = 29.43 N
• Lever arm = 0.18 m

Then:

T_peak = 29.43 × 0.18 = 5.30 N·m

With a safety factor of 1.3:

T_design = 5.30 × 1.3 = 6.89 N·m

With two hinges:

About 3.45 N·m per hinge

For high-vibration environments, such as compressors, generators, or mobile equipment, the safety factor should be increased further.

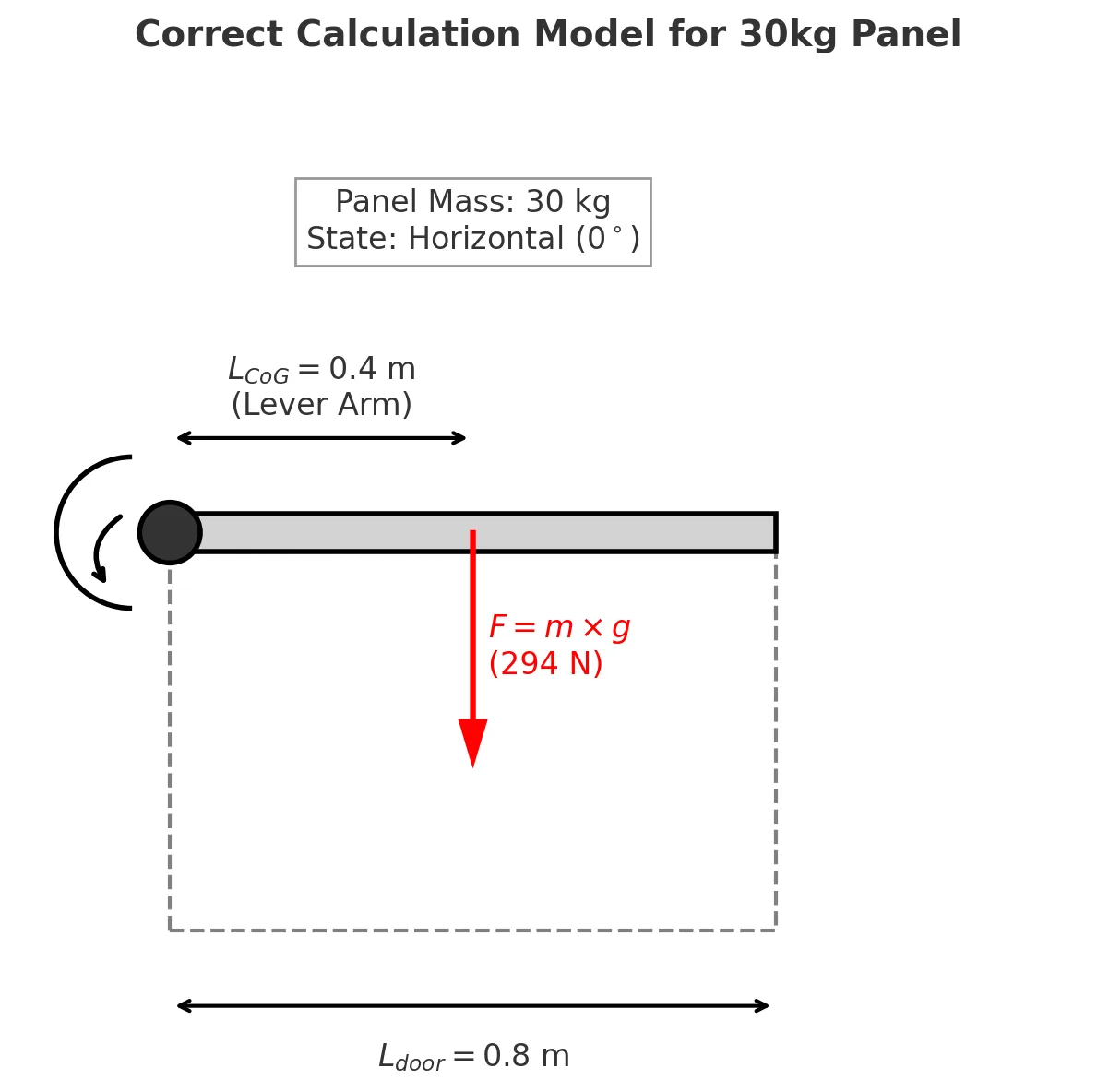

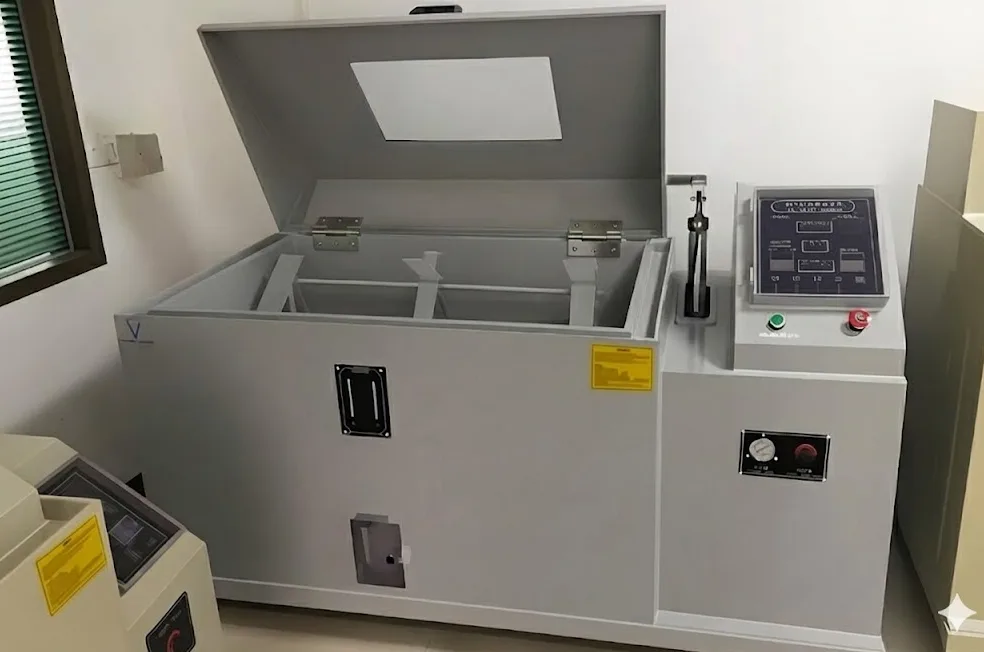

Worked Example: 30 kg Top-Opening Panel

This is the most useful kind of real engineering example because it shows where many heavy-panel selection errors begin.

Assume you are designing a top-opening maintenance lid for an industrial outdoor cabinet or equipment enclosure.

• Panel mass = 30 kg
• Panel length = 0.8 m
• Center of gravity assumed at half length = 0.4 m
• Panel must hold between 0° and 90°

First convert mass to force:

Weight = 30 × 9.81 = 294.3 N

Then calculate peak torque at the horizontal position:

T_peak = 294.3 × 0.4 = 117.72 N·m

This means the hinge system must provide at least about 117.7 N·m to hold the lid from dropping when horizontal.

Now apply a practical industrial safety factor:

T_design = 117.72 × 1.2 = 141.26 N·m

If two hinges share the load:

Torque per hinge = 141.26 ÷ 2 = about 70.6 N·m

Peak torque is determined by panel weight, center of gravity distance, and the worst-case opening position.

This is already in the super-heavy-duty range. In real projects, a pure friction-hinge-only solution at this level may make the lid too difficult to operate. That is why many heavy lids use a hybrid design, such as torque hinges plus gas struts or stays, so the gas strut handles most of the gravity load while the hinge provides controlled positioning.

Top-Opening vs Side-Swing: Why Orientation Changes Everything

One of the most common mistakes in hinge selection is assuming that a 30 kg panel always requires the same torque regardless of installation direction. It does not.

Top-Opening Lid

For a top-opening lid, gravity continuously acts to pull the panel downward through the full motion range. That means the hinge system must resist almost the full gravitational torque. This is the worst case for holding torque selection.

In this orientation, the full calculated torque is relevant.

Side-Swing Panel

For a side-swing panel rotating around a vertical axis, gravity acts mainly as a downward load, not as a large rotational moment around the hinge axis. In many such cases, the torque hinge is used more for movement feel, anti-slam behavior, or wind resistance than for true gravity holding.

As a rule of thumb, side-swing applications may only need about 10% to 20% of the torque required for a top-opening panel of the same mass and size, depending on the exact geometry and user requirement.

This is why installation orientation must always be defined before hinge selection starts.

Common Heavy-Panel Calculation Mistakes

Ignoring Accessory Weight

Many designers calculate only the bare metal panel and forget the real assembly. Once gaskets, stiffeners, cable trays, handles, monitor brackets, or other mounted components are added, the actual center of gravity shifts and the total weight increases.

Always perform the final torque review after the bill of materials is frozen, not before.

Confusing Static and Dynamic Torque

A hinge may hold well when stationary but still feel unstable during movement if the dynamic torque drops sharply after breakaway. This can cause the panel to accelerate unexpectedly once motion begins.

Always review both holding performance and movement behavior, especially for user-facing equipment or large lids.

Material Mismatch

Using standard carbon steel hinges in coastal, chemical, or outdoor environments often leads to corrosion, rising friction, seizure, and premature torque loss. For harsh environments, material selection is not a minor detail. It is part of the torque stability strategy.

Where corrosion resistance is critical, review the application against the torque hinge material guide and prioritize stainless steel or properly protected alloys.

Materials and Environmental Durability

For outdoor, medical, food, or coastal applications, environmental durability is as important as nominal torque rating. Corrosion, heat, low temperatures, and chemical exposure all affect long-term torque stability.

Selection Workflow

1. Define the installation orientation and motion range
2. Measure the real mass and center of gravity of the final assembly
3. Calculate peak torque at the worst-case angle
4. Apply a safety factor of 1.2 to 1.5
5. Divide the load across the actual number of hinges, while remembering real sharing is never perfectly equal
6. Select hinge type and torque range
7. Verify material and environment compatibility
8. Prototype test the system for feel, hold, and temperature behavior

If your project requires more detailed multi-scenario examples, refer to How to Calculate Torque Hinge Requirements: Industry Case Studies.

Installation and Alignment Guide

Correct installation is just as important as correct selection. Even a correctly rated hinge can fail early if misalignment, side loading, or improper fastening distorts the housing or shifts the hinge axis.

• Mounting surfaces should be flat and rigid
• Multiple hinge axes must remain co-linear
• Fastener torque must be controlled to avoid housing distortion
• Thread-locking compounds may be needed in high-vibration applications

For applications requiring tunable resistance, see adjustable torque hinges for principles, field setup, and adjustment behavior.

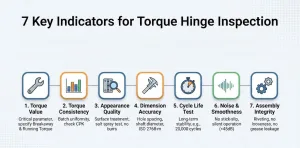

Maintenance and Service Life

Torque hinge life depends on load, cycle frequency, temperature, environment, and maintenance quality. Standard-grade hinges may perform well in moderate conditions, but premium industrial hinges with hardened shafts and advanced friction elements are more suitable for high-cycle or harsh-duty applications.

Typical inspection points include:

• surface corrosion
• mounting-hole cracking
• uneven torque feel
• torque fade over time
• fastener loosening

In critical equipment, actual torque should be checked periodically, especially when the panel must hold safely under repeated use. If your main concern is long-term torque fade, wear, or reliability drift, review our technical guide on why torque hinges lose strength and how to prevent it.

Troubleshooting Guide

Typical Torque Reference Ranges

• Small electronics: 0.1 to 0.6 N·m
• Laptops: 0.4 to 0.8 N·m per hinge
• Medical or POS displays: 1.5 to 5.0 N·m
• Industrial cabinets and equipment doors: 5.0 to 15.0 N·m
• Heavy machinery hatches and lids: 20.0 N·m and above, often with counterbalance support

FAQ

Conclusion

Torque hinge selection is not just about choosing a nominal torque value from a catalog. It requires understanding gravity, center of gravity location, motion orientation, safety factor, real load sharing, environmental conditions, and long-term durability.

For lightweight screens, moderate equipment doors, and heavy industrial lids, the same physics principle applies: calculate the real peak torque, apply a realistic safety factor, and match the hinge system to the actual application rather than the theoretical minimum. When this process is done correctly, the result is a safer, smoother, and more durable product.
