How Lift-Off Hinges Optimize Safety Guards & Cut MTTR

In modern industrial automation design, I have always maintained that engineers face a core contradiction: the trade-off between equipment safety and maintenance efficiency.

Based on my observations on high-speed automation lines, Safety Guards are mandatory compliance components. However, these guards often become a “nightmare” for maintenance personnel. Every routine inspection or troubleshooting task consumes a significant amount of time just to disassemble fixed protective panels.

The purpose of this article is not to discuss whether safety guards should exist, but to explore how Lift-off Hinges serve as a critical engineering solution to this pain point.

I will detail, from an engineering implementation perspective, how this component solves the inefficiencies caused by fixed connections. It must be emphasized that a lift-off hinge is not just a simple connection part. In my view, it is a core component of modular design and Preventative Maintenance strategies.

Core Function 1: Reducing Mean Time to Repair (MTTR) and Managing Equipment Downtime

When evaluating production efficiency, Mean Time to Repair (MTTR) is a critical metric. I have found that the choice of connection hardware directly determines the performance of this metric.

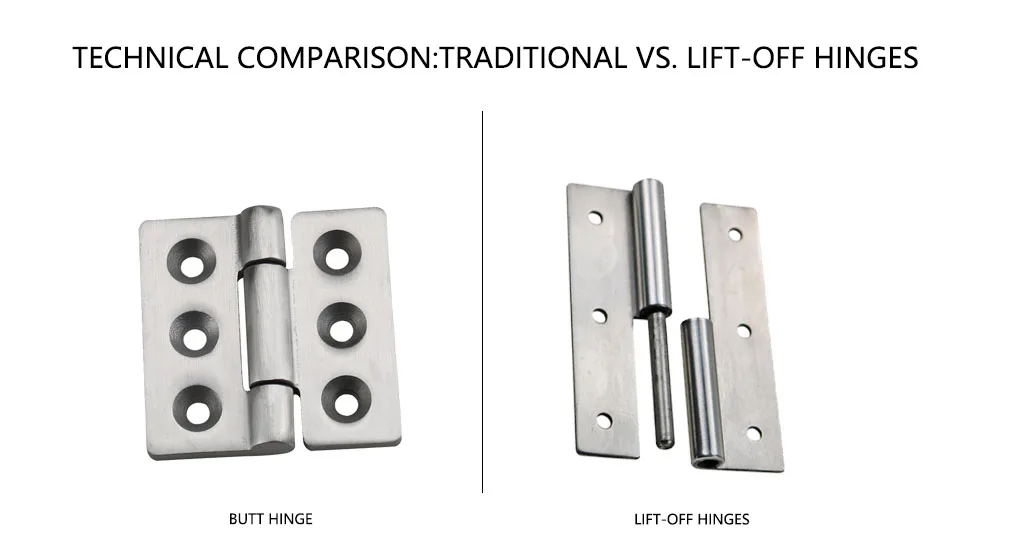

Technical Comparison: Traditional vs. Lift-off Hinges

In traditional mechanical design, engineers are accustomed to using Fixed Butt Hinges.

• Fixed Butt Hinges: Removing a safety door usually requires loosening at least 4 to 8 screws. This requires technicians to carry specific tools (such as screwdrivers or hex keys).
• Process Flaws: This process is not only tedious, but I have frequently seen disassembled screws get lost on-site, leading to missing fasteners during reassembly and compromising equipment integrity.

In contrast, the design logic of Lift-off Hinges is completely different.

• Operation: It allows the door panel to be separated directly from the frame via a vertical lifting motion.
• Tool Requirement: No tools are required for the entire process.

Data-Driven Scenario Analysis: Impact on OEE

To quantify this difference and verify the Return on Investment (ROI), we established the following conservative calculation model:

• Downtime Cost: $500 / minute (Based on conservative estimates from [Senseye Industry Reports], actual costs may be higher).
• Maintenance Frequency: Once per week (Deep cleaning or inspection).
• Sample Object: 10 critical safety guard units.

Disassembly Efficiency Comparison:

• 🔴 Traditional Screw Connection: 3 minutes per door → 10 doors consume 30 minutes.
• 🟢 Lift-off Hinges: 15 seconds per door → 10 doors consume 2.5 minutes.

Conclusion:

Just in the disassembly phase, a single maintenance session saves 27.5 minutes. This means that for every routine inspection, the reduction in potential production downtime losses amounts to $13,750, significantly improving Overall Equipment Effectiveness (OEE).

Psychological Impact on Preventative Maintenance

Beyond the data, I have also noticed a phenomenon at the operational psychology level. When the disassembly process is difficult, operators tend to postpone non-urgent internal inspections.

By adopting lift-off hinges, we eliminate this physical barrier. The convenient disassembly encourages operators to perform visual inspections more frequently. This allows potential mechanical wear to be detected before it causes a breakdown, thereby truly realizing preventative maintenance.

Core Function 2: Operational Optimization in Confined Spaces and Layout Flexibility

In factory layouts where floor space is at a premium, space management is a mechanical design challenge. I often encounter situations where safety doors cannot be fully opened due to insufficient space.

Solving Insufficient Opening Space

In compact plant layouts, many machines are located close to walls or other equipment.

• Traditional Limitations: Traditional swinging doors require a 90-degree or 180-degree swing radius. If there are obstacles in the swing path, the door cannot open, or can only open a crack, making maintenance difficult.
• Engineering Solution: Lift-off hinges allow technicians to vertically lift and remove the door panel totally. This means we no longer need to reserve space for the door swing.

Eliminating Maintenance Obstacles

When performing complex repair tasks, such as replacing large conveyor motors or hydraulic pumps, simply opening the door is not enough. The open door panel itself often blocks light or restricts the technician’s arm movement.

I recommend that for safety guards involving core power components, lift-off designs must be used. After completely removing the door panel, technicians gain a 100% unobstructed view and operational space.

Implementation of Modular Fencing Systems

Modern factories emphasize flexible manufacturing. Production line layouts may need adjustment every few years.

Modular Fencing Systems connected by lift-off hinges offer extreme flexibility. We can quickly dismantle fencing units and reconfigure them without cutting or complex re-welding. This aligns with the Single Minute Exchange of Die (SMED) philosophy in Lean Manufacturing.

Core Function 3: Improving Installation and Ergonomic Safety for Heavy-Duty Safety Doors

Industrial safety guards differ from household cabinet doors. To meet explosion-proof, sound insulation, or splash-proof requirements, they are often made of thick steel plates, double-layer laminated glass, or polycarbonate, often weighing over 20 kg.

This video demonstrates the simulated installation process of lift-off hinges, including the separated mounting structure and its advantages for heavy-duty or frequently removed doors. It helps users clearly understand how each hinge component aligns and functions during installation.

Advantages of Split Installation

When installing heavy door panels, traditional hinges require the installer to hold the heavy panel with one hand while trying to align tiny screw holes with the other. This usually requires coordination between two or even three workers.

Lift-off Hinges utilize a Split Design:

1. Step 1: Installers can fix the “Male” part (with the pin) of the hinge to the door frame.
2. Step 2: Fix the “Female” part (with the receiver hole) to the door panel on a workbench.
3. Step 3: Simply lift the door panel and drop it onto the pins to complete the hanging.

Reducing Injury Risk and OSHA Compliance

This installation method significantly reduces the risk of Musculoskeletal Disorders (MSDs). According to guidance on ergonomics in the OSHA (Occupational Safety and Health Administration) Technical Manual, reducing the duration of holding heavy loads is key to reducing back injuries.

Feasibility of Single-Person Operation

In several projects I have designed, by using this split installation strategy, we transformed installation tasks that originally required two-person collaboration into operations that can be completed by a single person. In the current labor shortage context, this is significant for reducing labor costs.

Core Function 4: Cleaning and Hygiene Control in Special Environments

In the food processing, pharmaceutical, and chemical industries, Hygienic Design is of paramount importance.

Washdown Requirements in Food & Pharma Industries

According to relevant standards from the FDA and EHEDG (European Hygienic Engineering & Design Group), equipment surfaces in contact with food must be easy to clean.

The gaps in fixed hinges often become “dead zones” that are hard to reach. Food residue, moisture, and dust easily accumulate between the hinge pin and the door gap, becoming a breeding ground for Listeria or Salmonella.

Thorough Cleaning Process

I strongly recommend using 316 Stainless Steel Lift-off Hinges on safety guards for food machinery. (Note: If you are deciding on materials, you can refer to my detailed analysis on [SS304 vs. SS316 Stainless Steel Comparison] here).

• Process Optimization: During the daily Washdown cycle, operators can remove all safety guards and transport them to a dedicated cleaning room for high-pressure steam rinsing or chemical immersion.
• Zero Dead Zones: After removing the door panel, the hinge pins on the door frame are fully exposed. Cleaning staff can easily wipe or rinse around the pins, ensuring no residue remains.

This design facilitates effective environmental monitoring, ensuring the equipment passes strict microbial Swab Tests and fully complies with [FDA cGMP requirements]

Core Function 5: Compliance with ISO 14120 and Machinery Safety Standards

Many engineers worry that lift-off hinges might make safety guards too easy to remove, thus violating safety regulations. In fact, as long as they are designed correctly, they fully comply with international safety standards.

ISO 14120 Standards Analysis

Referencing ISO 14120:2015 (Safety of machinery — Guards — General requirements for the design and construction of fixed and movable guards), the standard stipulates that fixings for fixed guards must remain attached to the guard or the machinery when the guard is removed (captive), and tools must be used for removal.

However, for Movable Guards, the standard allows for tool-free opening, provided they are used in conjunction with Interlocks.

Key Design Features: Anti-Removal & Opposite Mounting

To balance convenience and safety, we adopt the following strategies in engineering practice:

• Opposite Mounting: If a door uses two lift-off hinges, we can mount them pointing in opposite directions (one pin up, one pin down). While this makes removal harder (usually not for frequent removal scenarios), a more common practice is to combine them with a mechanical latch.
• Captive Pin: Some high-end lift-off hinges are designed with an internal spring pin. The shaft hole and pin profile only match geometrically to separate when the door is opened to a specific angle (e.g., 90 or 180 degrees). This prevents the door from being accidentally lifted and removed while in the closed position.

Rapid Access in Emergencies

In extreme situations such as fire or personnel entrapment inside equipment, rapid access complying with NFPA (National Fire Protection Association) standards is crucial. Lift-off hinges provide an option beyond “breaking in.” Rescue personnel can quickly remove obstacles without searching for screwdrivers or demolition tools.

Engineering Selection: Adaptability Analysis for Different Safety Guard Materials

Not all lift-off hinges are suitable for all scenarios. Based on my experience, material matching is the first step in selection.

Hinge Material	Best Application Scenario	Engineering Rationale
316 Stainless Steel (SS316)	Food processing, pharmaceuticals, severe marine corrosion environments, outdoor 5G base stations.	Extreme corrosion resistance and resistance to chemical cleaning agents; meets hygienic design requirements.
304 Stainless Steel (SS304)	General outdoor cabinets, humid industrial environments.	Lower cost than 316, but sufficient to handle rain and general oxidation; high cost-performance ratio.
Carbon Steel / Zinc Die-cast	Indoor dry environments, CNC machine exteriors, electrical control cabinets.	High structural strength, good cost-efficiency, suitable for areas with no corrosion risk.
Reinforced Nylon / Engineering Plastic	Light electronic equipment, medical devices.	Lightweight, no metal dust pollution, good insulation properties.

Load Calculation and Configuration

Many design failures are due to underestimating the weight of the door panel. When selecting, I recommend calculating the Radial Load and Axial Load.

• For narrow doors with an aspect ratio greater than 2:1, I suggest adding a third hinge to prevent deformation in the middle of the door panel.
• Ensure the sum of the hinge’s rated load is 1.5 to 2 times greater than the door weight to account for impact forces during operation.

Orientation: Left vs. Right Hand

This is a technical detail that is easily overlooked.

• L-Type (Left-hand): The door pivot is on the left.
• R-Type (Right-hand): The door pivot is on the right.

Be sure to distinguish clearly in the procurement BOM (Bill of Materials). I have seen many on-site installations fail because the wrong direction was purchased, causing the door to be unmountable or requiring it to be installed upside down, severely affecting aesthetics and function.

Conclusion: Incorporating Lift-off Hinges into Standardized Design Specifications

In summary, a lift-off hinge is by no means a simple hardware accessory. Through the analysis in this article, we can see it plays an irreplaceable role in reducing MTTR, optimizing confined spaces, improving ergonomics, and meeting hygiene standards.

Actionable Suggestions

For mechanical design engineers and equipment procurement managers, I propose the following suggestions:

1. Audit Existing BOMs: Check current equipment lists to identify safety guards that require frequent maintenance but still use fixed screw connections.
2. Calculate TCO: Do not just look at the unit price of the hinge. Although the unit price of a lift-off hinge may be slightly higher than a standard butt hinge, when calculating the Total Cost of Ownership (TCO) over the full lifecycle, the labor costs saved will far exceed the procurement price difference.
3. Update Design Specifications: Incorporate lift-off hinges as a standard configuration for specific maintenance windows into the company’s mechanical design specifications.

By adopting this engineering detail improvement, we not only enhance machine performance but also show respect for the safety and efficiency of frontline operators.
