Hinge Sample Approval Checklist for OEM Buyers

A hinge sample can look acceptable on the desk but still create problems during assembly, pilot production, or field use. For OEM buyers, the risk is not only whether the sample opens and closes. The real risk is approving a hinge that later causes door misalignment, inconsistent torque, corrosion, latch problems, gasket leakage, production rework, or supplier disputes after tooling and purchasing decisions have already moved forward.

This hinge sample approval checklist is designed for OEM buyers, sourcing teams, engineers, and quality teams that need to approve hinge samples before production. It focuses on practical sample validation: drawing revision, critical dimensions, material evidence, surface finish, functional performance, load behavior, cycle test data, mounting compatibility, and supplier documentation.

The goal is not to turn sample approval into a complicated inspection manual. The goal is to create a clear approval gate: what must pass, what can be conditionally accepted, what requires supplier correction, and what should trigger a new sample before mass production begins.

Table of Contents

Why Hinge Sample Approval Must Happen Before Production

OEM hinge sample approval inspection with drawing caliper and checklist

Hinge problems often appear late because the hinge is usually a small part of a larger assembly. A buyer may approve a sample based on appearance, but the real problems show up when the hinge is installed on the door, aligned with the frame, loaded with the final panel weight, cycled repeatedly, or exposed to the actual operating environment.

A hinge sample approval process helps prevent avoidable production issues before purchase orders, tooling changes, or assembly schedules are locked in. For OEM projects, this step is especially important when the hinge affects door alignment, opening force, holding torque, load capacity, corrosion resistance, sealing performance, safety access, or the customer’s final product experience.

Sample approval confirms whether the submitted hinge sample meets the buyer’s drawing and application requirements, but it is only one step in a broader supplier verification flow. When the project requires deeper supplier control — first-article reports, control plans, traceable lot evidence, and statistical capability data — the advanced QC protocols for custom hinge procurement covers the supplier-side verification workflow that goes beyond first-sample approval.

The Failure Chain: From Sample Deviation to Production Rework

Most sample approval failures start with a small deviation that looks harmless during first inspection. A hole position is slightly off. The hinge leaf is not flat. The pin has too much play. The torque feels acceptable by hand but varies between samples. The surface looks clean but has burrs near the mounting edge. Each issue may seem minor until the hinge is installed into the real product.

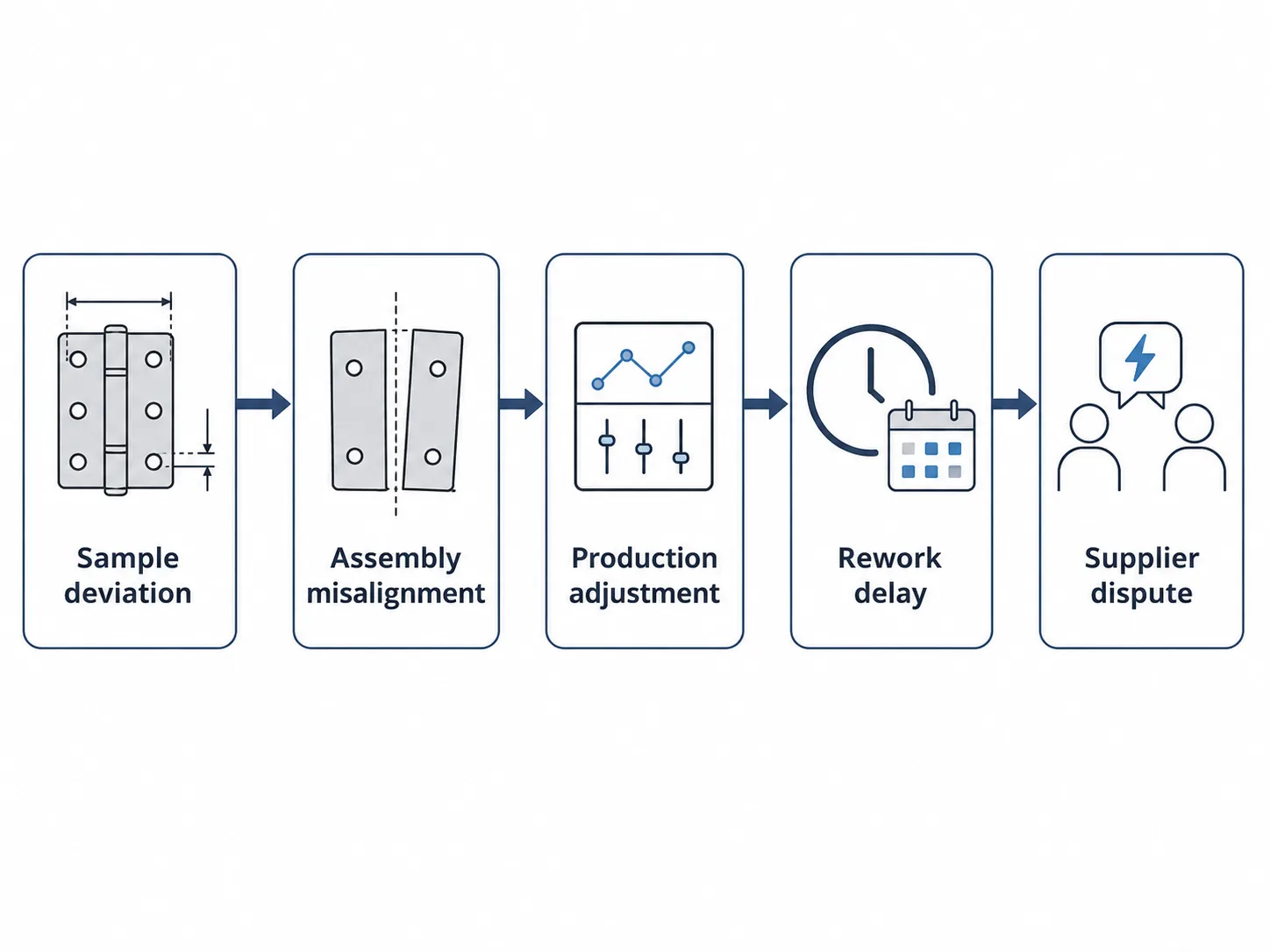

Hinge sample deviation failure chain from assembly misalignment to production rework

The failure chain usually looks like this:

Sample deviation is missed during approval.
The hinge creates assembly misalignment or inconsistent movement.
The door, panel, lid, or cover requires adjustment during production.
Rework increases labor time and delays shipment.
The buyer and supplier disagree over whether the issue is a hinge defect, drawing issue, or installation issue.

A strong sample approval checklist prevents this by linking every inspection item to a real production risk. The buyer should not ask “Does the hinge look good?” The better question is: “Can this hinge be installed, loaded, cycled, finished, and documented without creating production or field-service problems?”

The Approval Gate: What OEM Buyers Should Check First

Before detailed testing, the buyer should confirm whether the sample belongs to the correct project version. Many sample problems come from mismatched drawings, outdated revisions, unclear tolerance requirements, or samples made from a temporary process instead of the intended production method.

Start with these approval gate items before spending time on advanced testing:

Approval Gate Item	What to Check	Why It Matters
Drawing revision	Part number, revision date, critical dimensions, notes	Prevents approving a sample made to an outdated drawing
Application match	Door type, panel weight, mounting method, opening angle	Confirms the sample was evaluated for the real use case
Material requirement	Steel grade, stainless grade, zinc alloy, polymer, bushing material	Prevents corrosion, wear, or strength problems later
Surface finish	Plating, coating, passivation, polishing, burr control	Affects appearance, corrosion resistance, cleanability, and assembly fit
Mounting interface	Hole spacing, countersink, weld area, pin clearance, leaf flatness	Prevents installation interference and door misalignment
Supplier evidence	Material certificate, dimensional report, test report, sample quantity	Confirms the sample is supported by verifiable data

If these gate items are unclear, the sample should not move directly into approval testing. Ask the supplier to clarify the drawing, material, process, or test evidence first.

Hinge Sample Approval Checklist

The checklist below can be used as a practical review framework. It should be adapted to the hinge type, application risk, customer specification, and production volume. For lot-by-lot sampling beyond the first article, the principles in ISO 2859-1, the international acceptance sampling standard, can be applied to define sample size and acceptance criteria for ongoing production inspection.

Checklist Item	What to Review	Pass Evidence	Reject or Re-Sample Trigger
Drawing match	Part number, revision, tolerance notes, mounting layout	Sample matches the approved drawing revision	Wrong revision, missing critical dimensions, unclear tolerance
Critical dimensions	Hole spacing, pin diameter, knuckle length, leaf thickness, overall size	Measured dimensions match the buyer’s drawing	Any critical dimension outside agreed tolerance
Leaf flatness and alignment	Flatness, twist, hinge axis alignment, mounting face contact	Hinge sits correctly on the intended mounting surface	Rocking, twist, visible axis offset, binding after installation
Material compliance	Base material, pin material, bushing material, fastener compatibility	Supplier provides material evidence matching the specification	Material not verified or incompatible with application conditions
Surface finish	Burrs, sharp edges, coating coverage, plating, passivation, scratches	Finish meets appearance, corrosion, and assembly requirements	Burrs, exposed base metal, uneven coating, damaged edges
Functional movement	Opening angle, friction, free play, binding, noise, smoothness	Movement is consistent across samples	Binding, excessive play, irregular movement, abnormal noise
Load or support behavior	Door weight support, sag, deflection, hinge spacing	Hinge supports expected load without unacceptable sag	Visible deformation, sag, mounting distortion, early looseness
Torque or position control	Holding torque, movement feel, repeatability, left/right direction	Torque matches the product requirement and feels consistent	Torque too high, too low, inconsistent, or directionally wrong
Cycle or durability evidence	Opening cycles, wear pattern, pin/bushing condition	Supplier provides test evidence appropriate for the application	No test evidence for high-cycle or safety-related applications
Corrosion or environment fit	Salt, moisture, cleaning chemicals, outdoor exposure, washdown	Material and finish match expected environment	Finish or material unsuitable for corrosion exposure
Packaging and handling	Protection during shipment, surface scratches, part identification	Samples arrive clean, labeled, and undamaged	Damage, mixed parts, missing labels, inconsistent packaging
Supplier response	Ability to answer questions, provide reports, revise samples	Supplier provides clear data and corrective action when needed	Supplier cannot explain deviations or provide traceable evidence

The checklist should not be treated as a generic pass/fail form. Each item should be tied to the hinge’s actual function. A light cabinet hinge, a heavy equipment access hinge, a torque hinge, and a corrosion-resistant stainless hinge do not need the same approval emphasis.

Sample Testing by Hinge Application

Different hinge applications fail in different ways. The approval checklist should change based on the hinge’s function in the final product.

Hinge Application	Main Sample Risk	Approval Focus	Buyer Should Ask For
Industrial enclosure hinge	Door misalignment, gasket compression issue, corrosion	Hole spacing, leaf flatness, material, finish, door fit	Dimensional report, material certificate, finish details
Heavy-duty access hinge	Sag, bending, overload, mounting distortion	Door weight, hinge count, spacing, load path, pin strength	Load review, drawing confirmation, sample installation test
Torque or position-control hinge	Inconsistent holding force, poor movement feel, drift	Torque range, repeatability, operating angle, direction	Torque test data and application load information
Stainless steel hinge	Corrosion, staining, fastener mismatch, surface damage	Material grade, passivation, finish, fastener compatibility	Material certificate and corrosion/environment review
Weld-on hinge	Weld area distortion, alignment shift, post-weld corrosion	Weld surface, leaf geometry, pin protection, coating plan	Drawing of weld area and post-weld protection requirement
Lift-off or removable hinge	Loose parts, poor reinstallation alignment, unsafe removal	Lift direction, clearance, pin fit, reassembly repeatability	Removal procedure and installed clearance check

When the sample is intended for a heavy door, approval should not rely only on visual appearance or catalog load claims. The buyer should verify real door weight, hinge spacing, center of gravity, and mounting method. For high-load applications, a heavy-duty hinge selection process based on door weight should be completed before approving the sample for production.

When the sample is a stainless steel hinge for outdoor, washdown, cleanroom, or corrosive environments, the material and surface finish should be reviewed together. If moisture, cleaning chemicals, salt, or dissimilar metals are part of the application, buyers should understand why stainless steel hinges can still corrode before approving the sample.

When the sample is a torque hinge, approval should focus on holding force, movement consistency, operating angle, and application load. If the hinge must hold a lid, display, cover, or access panel at a defined angle, the buyer should compare the sample against the expected use case, not only a catalog torque value. The torque hinge calculation and selection guide can help confirm whether the sample torque range matches the real product geometry.

Pass, Conditional Approval, or Reject?

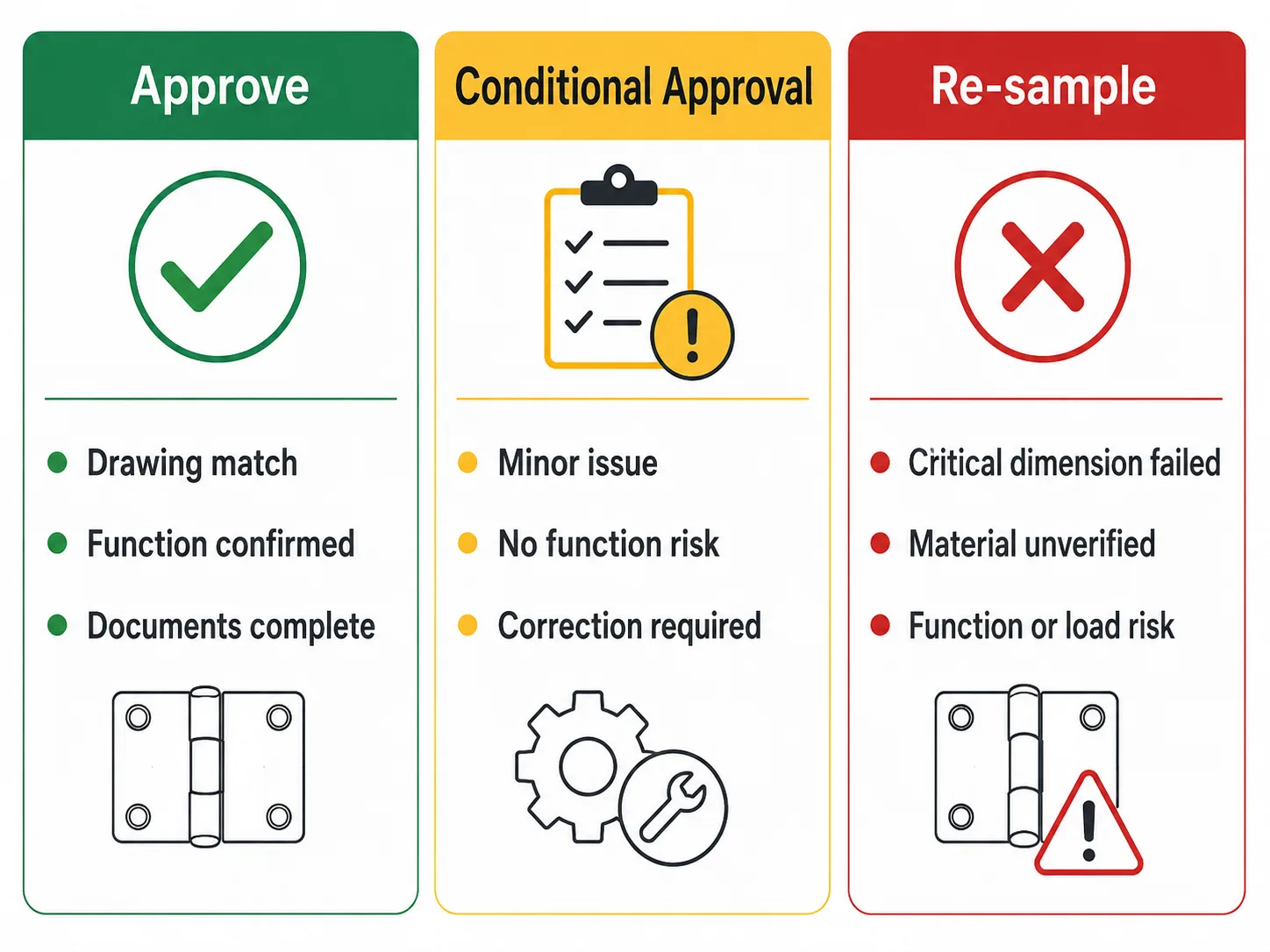

Hinge sample approval decision matrix for approve conditional approval and re-sample

Not every issue requires immediate rejection, but every deviation should be classified clearly. The buyer should avoid vague approval comments such as “looks acceptable” or “supplier to improve later.” Instead, use an approval decision matrix.

Decision	When to Use It	Required Action
Approve	Sample meets drawing, function, material, finish, and documentation requirements	Record sample approval and preserve approved reference sample if needed
Conditional approval	Minor issue does not affect fit, function, safety, or production risk	Document condition and require supplier correction before production shipment
Re-sample required	Critical dimension, material, finish, load, torque, or function is not confirmed	Reject current sample and request corrected sample with evidence
Supplier review required	Failure cause is unclear or buyer and supplier data do not match	Agree on measurement method, test conditions, and corrective action
Design review required	Sample meets drawing but still fails in application	Review drawing, hinge size, mounting method, tolerance stack-up, or product design

A sample can meet the drawing and still fail the application if the drawing does not fully describe the hinge’s real function. In those cases, the buyer should not blame only the supplier or only the inspection method. The application requirement may need to be added to the drawing, checklist, or approval specification.

Common Mistakes OEM Buyers Should Avoid

Mistake 1: Approving by Appearance Only

A clean-looking hinge sample may still have wrong hole spacing, weak pin fit, inconsistent torque, poor material compatibility, or hidden coating damage. Appearance is only the first check, not the approval basis.

Mistake 2: Testing Without the Real Application Load

A hinge that feels smooth in hand may behave differently when installed on a wide door, heavy cover, gasketed panel, or torque-controlled lid. Sample testing should reflect the product’s real load, motion, and mounting conditions.

Mistake 3: Accepting Supplier Summary Data Only

A one-line statement such as “sample passed test” is not enough for critical applications. Buyers should request the relevant evidence: dimensional report, material certificate, surface finish details, functional test data, or agreed inspection record.

Mistake 4: Not Linking Approval to Production Control

Sample approval is only useful if the approved condition can be repeated in production. If the supplier changes tooling, material, coating process, assembly method, or inspection plan, the buyer may need a new sample review or production approval step.

Mistake 5: Using One Checklist for Every Hinge

A low-risk cabinet hinge and a high-load equipment hinge should not be approved with the same level of review. The checklist should match the hinge’s application risk, failure consequence, and production volume.

What to Ask the Supplier Before Re-Sampling

If a hinge sample fails approval, do not simply ask the supplier to “send another sample.” First identify the failure type and ask for a correction plan. Otherwise, the second sample may repeat the same problem.

Which checklist item failed?
Was the sample made to the correct drawing revision?
Was the issue caused by material, tooling, assembly, coating, or inspection method?
Can the supplier provide revised dimensional data or material evidence?
Will the next sample be made using the intended production process?
Does the drawing need to add a missing application requirement?
Should the buyer provide the real door, panel, bracket, or mounting fixture for test fit?
Does the failure require PPAP, FAI, or another production approval step?

The re-sample request should be specific. For example, “adjust pin clearance and provide updated dimensional report” is more useful than “improve quality.” The supplier should understand exactly what must change before the next sample is shipped.

What OEM Buyers Should Send Before Sample Approval

Good sample approval starts before the sample is made. The buyer should provide enough application information so the supplier is not guessing the hinge’s real duty conditions.

Approved drawing and revision level
Target application and product type
Door, panel, lid, or cover weight
Door width, hinge spacing, and center-of-gravity information if relevant
Required opening angle and motion feel
Load, cycle, torque, or corrosion requirements if applicable
Surface finish and appearance requirements
Material grade and fastener compatibility requirements
Mounting method: screw, weld, rivet, insert, or bracket
Environment: indoor, outdoor, washdown, cleanroom, salt, chemical, or vibration exposure
Required supplier documents: material certificate, dimensional report, test data, or control plan

The more clearly the buyer defines the application, the easier it is for the supplier to submit a useful sample. Without this information, sample approval becomes a guessing process instead of a controlled decision.

Final Recommendation

OEM hinge sample approval should focus on fit, function, material, finish, documentation, and repeatability. A sample should not be approved only because it looks correct or opens smoothly by hand. It should be approved because it meets the drawing, supports the real application, and can be repeated in production.

Use the checklist as a decision gate. Approve the sample when the evidence is clear. Use conditional approval only for minor issues that do not affect function or production risk. Request a corrected sample when critical dimensions, material, finish, load behavior, torque, corrosion resistance, or supplier documentation are not confirmed.

FAQ

What should OEM buyers check before approving a hinge sample?

OEM buyers should check drawing revision, critical dimensions, material grade, surface finish, functional movement, load behavior, torque consistency when applicable, corrosion resistance, mounting compatibility, and supplier documentation before approving a hinge sample.

Is visual inspection enough for hinge sample approval?

Visual inspection is not enough for most OEM hinge samples. It can catch obvious defects, but dimensional measurement, material evidence, functional checks, and application testing are often needed before production approval.

What is the difference between sample approval and PPAP for hinges?

Sample approval checks whether the submitted hinge sample meets the buyer’s drawing and application requirements. PPAP is a broader production approval process that may include PSW, dimensional results, material certificates, control plans, PFMEA, MSA, and customer-specific documentation.

When should a hinge sample be rejected instead of conditionally approved?

A hinge sample should be rejected or re-sampled when a critical dimension, material, finish, load requirement, torque behavior, mounting interface, corrosion requirement, or supplier document is missing or does not meet the agreed specification.

What documents should suppliers provide with hinge samples?

Depending on project risk, suppliers may need to provide a drawing reference, dimensional report, material certificate, surface finish information, functional test data, cycle or load test data, corrosion test evidence, and corrective action notes if the sample is revised.
